SELECT A DIAGRAM

01 - Motor And Drive Parts


02 - Frame Parts


03 - Powerscrew And Ram Parts

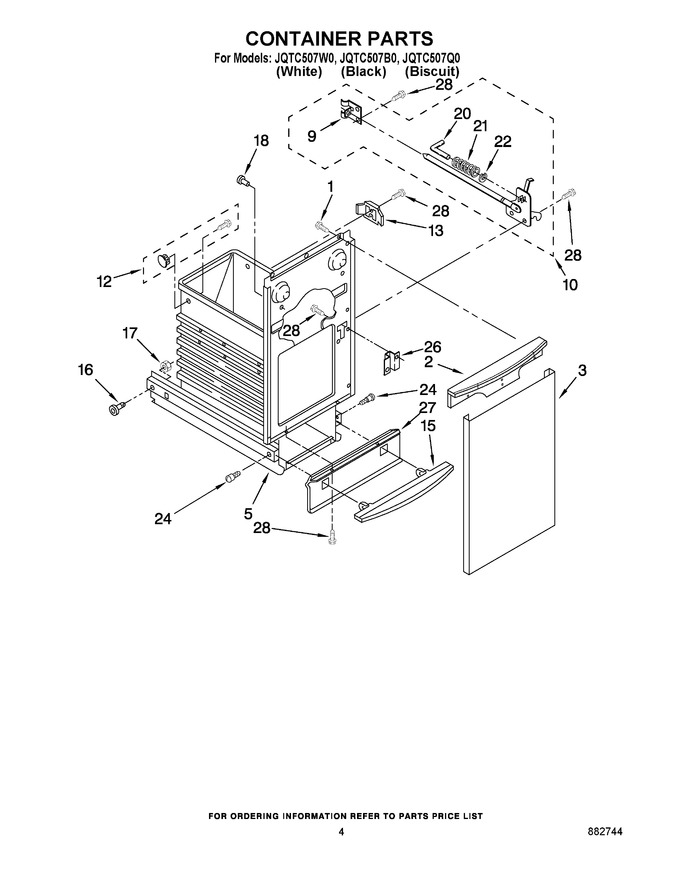

04 - Container Parts


05 - Panel And Control Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400888		Screw, 8-18 X 1/2 (2)   (Replaces: 3400888)				$ 7.50
2	WP9871267		Handle, Container (white)   (Replaces: 9871235)				$ 301.60
2	WP9871267		Handle, Container (black)   (Replaces: 9871267)				$ 301.60
2	9871573		Handle, Container (biscuit)		Appelez-nous	-
3	9871574		Panel, Container (biscuit)		Appelez-nous	-
3	9871309		Panel, Container (white)				$ 46.45
3	W11795370		Panel, Container (black)   (Replaces: 9871311)				$ 362.84
5	WPW10451276		Container Assembly   (Replaces: 9870996)				$ 510.52
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
10	675379		Latch Assembly   (Replaces: 9870066)				$ 182.53
12	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
13	9871125		Actuator, Safety Switch				$ 29.37
15	W11679165		Pedal, Foot (black)   (Replaces: 4149672)				$ 62.46
15	WP9871031		Pedal, Foot (white)   (Replaces: 9871031)				$ 159.54
15	9871577		Pedal, Foot (biscuit)		Appelez-nous	-
16	WP9871602		Container, Bearing Roller   (Replaces: 9871602)				$ 13.87
17	WP776356		Locknut, 3/8-24   (Replaces: 776356)				$ 8.53
18	775785		Bumper, Door (2)		Appelez-nous	-
20	W11705836		Pin, Latch   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring, Latch				$ 93.80
22	W11679168		Ring, ''e''   (Replaces: 775735)		Appelez-nous	-
24	WP780263		Screw, Shoulder 8-16 X 7/16 (2)   (Replaces: 780263)				$ 8.34
26	775665		Plate, Latch				$ 62.39
27	9871578		Guard, Toe Plate (biscuit)		Appelez-nous	-
27	WPW10242557		Guard, Toe Plate (black)   (Replaces: 777328)				$ 142.53
27	W10917704		Guard, Toe Plate (white)   (Replaces: 9871030)		Appelez-nous	-
28	WP3196175		Screw, 8-18 X 3/8   (Replaces: 3196175)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
