Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Seviceable Part) Appelez-nous -
6 2301192 Basket, Tall Appelez-nous -
7 2301291 Track, Basket-dual (right Side) Special Order $ 154.30

7 2301292 Track, Basket-dual (left Side) Special Order $ 174.94

9 2211743K Shelf, Slide Out (2) Upper Special Order $ 36.71

12 2195904K Basket Front Appelez-nous -
13 2301290 Shelf Track (left Side) Special Order $ 134.88

13 2301289 Shelf Track (right Side) Special Order $ 86.80

14 2212343K Shelf (2) Appelez-nous -
15 2301193 Basket, Sloped Appelez-nous -
16 W10759522 Screw   (Replaces: 486298) Special Order $ 7.75

17 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 10.42

19 WP2198587 Cover, Emitter   (Replaces: 2255572) Special Order $ 105.55

22 WP2198635 Spring   (Replaces: 2198635) Special Order $ 87.08

23 WP2198634 Pin   (Replaces: 2198634) Special Order $ 17.76

25 W11457217 Switch, Rocker Arm   (Replaces: 1115373) Special Order $ 38.18

26 W11629974 P.c. Board Emitter   (Replaces: 2220398) In-Stock Immediately $ 401.07

27 2255589 Cover, Icemaker Appelez-nous -
28 2212321 Slide, Ice Maker Mounting Special Order $ 67.14

29 WP489478 Screw   (Replaces: 489478) Special Order $ 7.75

30 2006254 Screw   (Replaces: 489214) Special Order $ 13.13

33 W11679940 Light Bulb   (Replaces: 2255743) In-Stock Immediately $ 11.30

34 WPW10142283 Screw   (Replaces: 8281185) Special Order $ 9.84

35 WP2198633 Flipper   (Replaces: 2198633) In-Stock Immediately $ 48.27

36 2255558 Cover, Receiver Special Order $ 41.19

37 2315398 Slide, Ice Maker Shut Off   (Replaces: 2255562) Special Order $ 10.90

38 W10757851 P.c. Board, Receiver   (Replaces: 2255114) In-Stock Immediately $ 311.76

39 WP2198643 Lens   (Replaces: 2198643) Special Order $ 8.18

41 2212376 Light Lens Special Order $ 91.18

42 WP2198641 Bracket, Ice Maker Cover   (Replaces: 2198641) Special Order $ 7.19

43 WPW10119935 Socket, Light   (Replaces: 2155597) Special Order $ 101.10

45 2212315 Ladder (left Side) Appelez-nous -
45 2212316 Ladder (right Side) Appelez-nous -
46 2219878 Shield, Wiring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

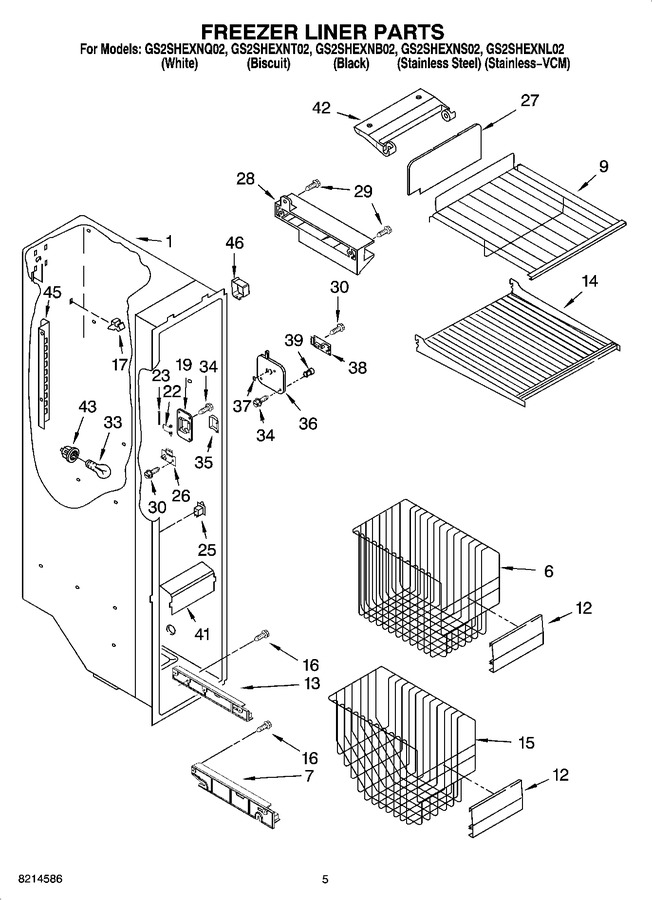

Diagram for GS2SHEXNT02
