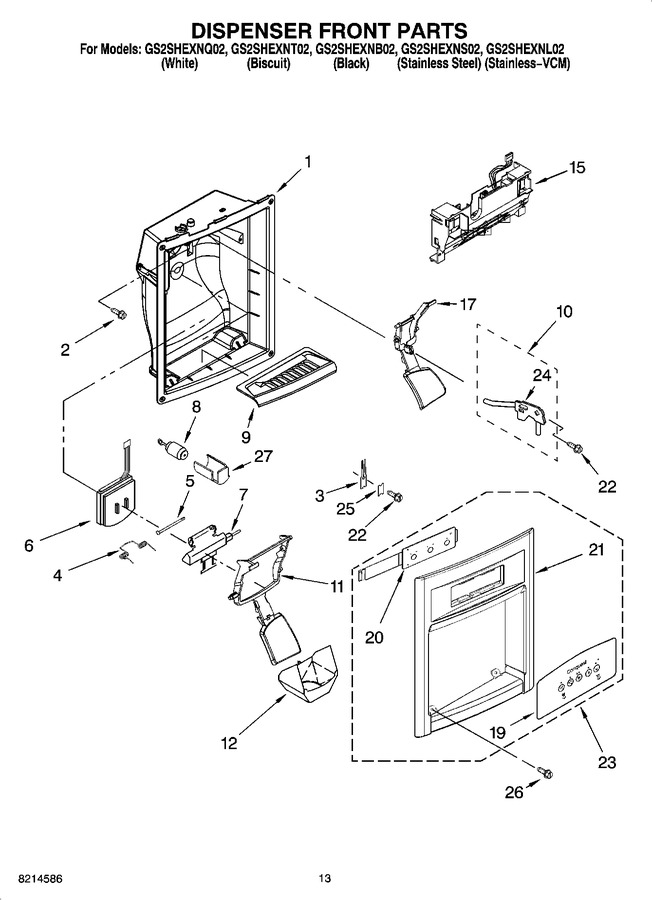

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.77 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2180209) |
|
$ 83.24 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 14.58 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 24.69 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | 2207048T | Grille, Overflow (biscuit) |
|
- | |||||
| 9 | 2207048W | Grille, Overflow (white) |
|
- | |||||
| 9 | 2207048B | Grille, Overflow (black) |
|
$ 30.06 | |||||
| 10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: 2304317) |
|
$ 134.13 | |||||
| 11 | WP2255431B | Lever, Ice Dispenser (black) (Replaces: 2255431B) |
|
$ 105.42 | |||||
| 11 | 2255431T | Lever, Ice Dispenser (biscuit) |
|
$ 43.34 | |||||
| 11 | WP2255431W | Lever, Ice Dispenser (white) (Replaces: 2255431W) |
|
$ 102.09 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.63 | ||||
| 15 | 2252162 | Bracket, Control |
|
- | |||||
| 17 | WP2255432B | Lever, Water Dispenser (black) (Replaces: 2255432B) |
|
$ 106.06 | |||||
| 17 | WP2255432T | Lever, Water Dispenser (biscuit) (Replaces: 2255432T) |
|
$ 100.81 | |||||
| 17 | WP2255432W | Lever, Water Dispenser (white) (Replaces: 2255432W) |
|
$ 100.95 | |||||
| 22 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.84 | |||||
| 23 | 2252079T | Front Cover Assembly (includes Items 19,20 & 21) (biscuit) |
|
$ 102.96 | |||||
| 23 | 2252079B | Front Cover Assembly (includes Items 19,20 & 21) (black) |
|
- | |||||
| 23 | 2252079W | Front Cover Assembly (includes Items 19,20 & 21) (white) |
|
$ 183.05 | |||||
| 24 | WP2304673 | Bracket, Dispenser (Replaces: 2188355) |
|
$ 15.60 | |||||
| 25 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.67 | |||||
| 26 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 27 | 2252127 | Sleeve, Mechanism Display |
|
$ 22.00 |
