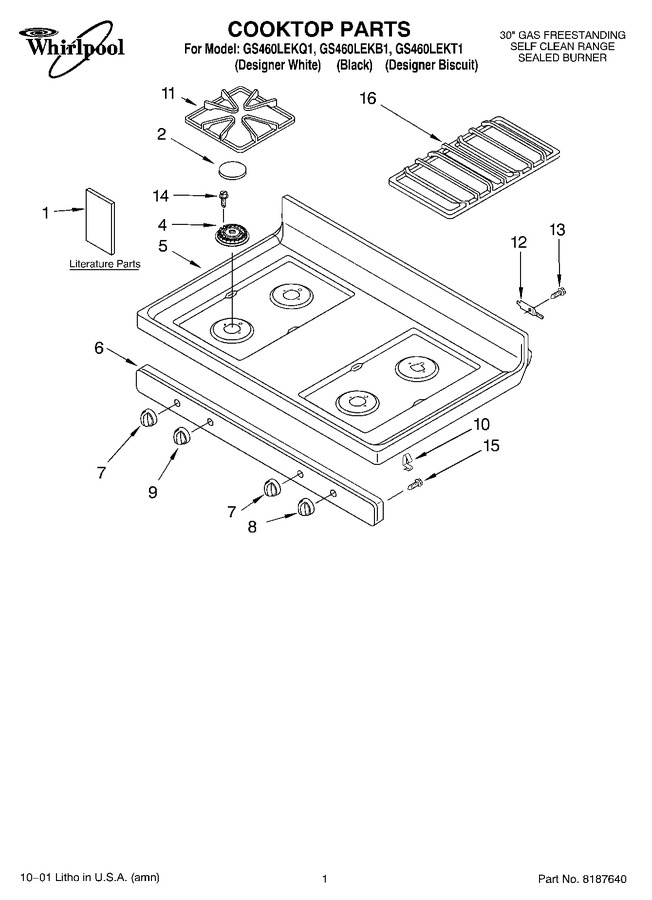

01 - Cooktop, Literature
02 - Control Panel
03 - Manifold
04 - Chassis
05 - Drawer And Broiler
06 - Door, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT8522648 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8522778 | Guide, Use & Care |
|
- | |||||
| 1 | LIT8522956 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8523048 | Literature Parts (instruct, Install (template)) |
|
- | |||||
| 2 | WP8273344 | Cap, Burner (espresso (lr - Rf)) (Replaces: 8273344) |
|
$ 102.05 | |||||
| 2 | WP3191904 | Cap, Burner (black (lf)) (Replaces: 3191904) |
|
$ 184.16 | |||||
| 2 | WP3191905 | Cap, Burner (grey (lf)) (Replaces: 3191905) |
|
$ 90.98 | |||||
| 2 | WP8273345 | Cap, Burner (espresso (lf)) (Replaces: 8273345) |
|
$ 168.46 | |||||
| 2 | WP3191901 | Cap, Burner (black (lr, Rf)) (Replaces: 3191901) |
|
$ 128.91 | |||||
| 2 | WP3191903 | Cap, Burner (grey (lr, Rf)) (Replaces: 3191903) |
|
$ 191.50 | |||||
| 2 | WP3191898 | Cap, Burner (black (rr)) (Replaces: 3191898) |
|
$ 71.00 | |||||
| 2 | 3191899 | Cap, Burner (grey (rr)) |
|
$ 31.21 | |||||
| 2 | WP8273343 | Cap, Burner (espresso (rr)) (Replaces: 8273343) |
|
$ 90.90 | |||||
| 4 | WP4455981 | Burner (lf) (Replaces: 8273214) |
|
Immediately | $ 91.90 | ||||
| 4 | WP4455980 | Burner (lr, Rf) (Replaces: 8273215) |
|
$ 65.21 | |||||
| 4 | 8273216 | Burner (rr) |
|
- | |||||
| 5 | 8195546 | Cooktop (biscuit) (Replaces: 8272743) |
|
- | |||||
| 5 | 8272251 | Cooktop (white) |
|
- | |||||
| 5 | 8272253 | Cooktop (black) |
|
- | |||||
| 6 | 8273028 | Panel, Manifold (biscuit) |
|
- | |||||
| 6 | WP8523854 | Panel, Manifold (white) (Replaces: 8273025) |
|
$ 290.58 | |||||
| 6 | 8523855 | Panel, Manifold (black) (Replaces: 8273027) |
|
$ 176.18 | |||||
| 7 | 8522626 | Knob, Control (2) (biscuit) |
|
- | |||||
| 7 | 8522623 | Knob, Control (2) (white) |
|
$ 39.24 | |||||
| 7 | 8273279 | Knob, Control (2) (black) |
|
$ 18.22 | |||||
| 8 | 8522628 | Knob, Accusimmer (biscuit) |
|
- | |||||
| 8 | 8522625 | Knob, Accusimmer (white) |
|
$ 69.56 | |||||
| 8 | 8273280 | Knob, Accusimmer (black) |
|
- | |||||
| 9 | 8522627 | Knob, Powerburner (biscuit) |
|
- | |||||
| 9 | 8522624 | Knob, Powerburner (white) |
|
$ 17.09 | |||||
| 9 | 8273281 | Knob, Powerburner (black) |
|
- | |||||
| 10 | 3195813 | Clip, Cooktop (2) |
|
- | |||||
| 11 | 8522853 | Grate, Burner (4) (espresso) |
|
$ 0.01 | |||||
| 11 | WPW10447925 | Grate, Burner (4) (grey) (Replaces: 8522850) |
|
Immediately | $ 299.55 | ||||
| 11 | WPW10447925 | Grate, Burner (4) (black) (Replaces: 8522851) |
|
Immediately | $ 299.55 | ||||
| 12 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 16 | 8522847 | Grate, Center (grey) |
|
- | |||||
| 16 | 8522849 | Grate, Center (espresso) |
|
- | |||||
| 16 | 8522846 | Grate, Center (black) |
|
$ 85.72 |
