04 - Chassis

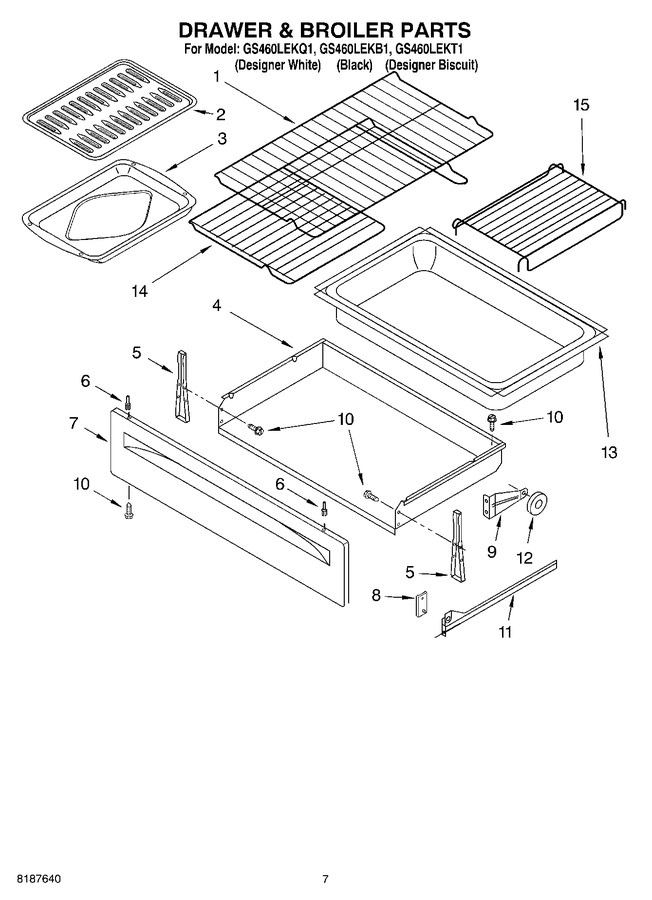

05 - Drawer And Broiler


06 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 46.84
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 98.65
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 330.36
4	8272606		Drawer, Storage		Appelez-nous	-
5	W11759228		Bracket, Drawer (2)   (Replaces: 3196817)				$ 28.27
6	3196815		Rivet, Push (2) (almond)		Appelez-nous	-
6	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 11.20
6	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 11.07
7	W11230490		Panel, Drawer Front (black)   (Replaces: 8053338)				$ 211.59
7	W11230473		Panel, Drawer Front (biscuit)   (Replaces: 8272502)		Appelez-nous	-
7	W11230486		Panel, Drawer Front (white)   (Replaces: 8053336)				$ 211.49
8	8522669		Spacer, Glide		Appelez-nous	-
9	8054069		Bracket, Roller		Appelez-nous	-
10	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
11	8274190		Rail Assy, Drawer (left Side)		Appelez-nous	-
11	8274191		Rail Assy, Drawer (right Side)		Appelez-nous	-
12	814229		Roller   (Replaces: 422604)			Immediately	$ 56.92
13	8272528		Liner, Drawer		Appelez-nous	-
14	WP8274021		Rack, Partial   (Replaces: 8274021)				$ 159.11
15	4396927		Rack, Insert   (Replaces: 8274022)				$ 246.10
