View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

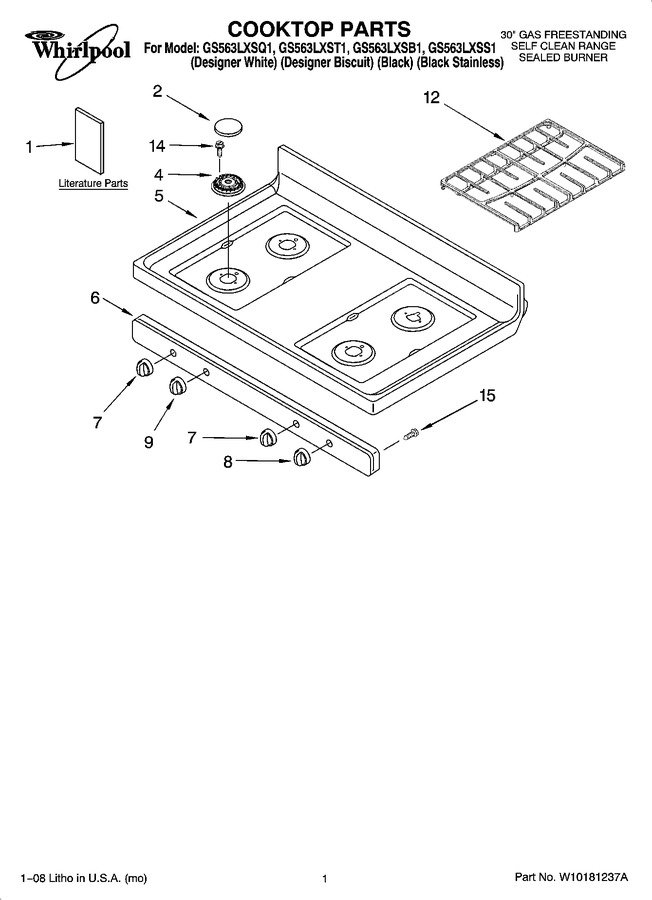

01 - Cooktop Parts
02 - Drawer & Broiler Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Control Panel Parts
06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10162212 | Guide, Use & Care |
|
- | |||||
| 1 | W10041630 | Tech Sheet (french) |
|
- | |||||
| 1 | 9762983 | Tech Sheet (english) |
|
- | |||||
| 1 | 9762997 | Instructions, Installation (english) |
|
- | |||||
| 1 | 9757142 | Instructions, Installation (spanish) |
|
- | |||||
| 1 | 9757143 | Instructions, Installation (french) |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | 9763247 | Cap, Burner Lf - Rf (espresso) |
|
- | |||||
| 2 | 3192486 | Cap, Burner Rr (black) |
|
$ 33.24 | |||||
| 2 | 9763242 | Cap, Burner Rr (grey) |
|
$ 102.15 | |||||
| 2 | 9763246 | Cap, Burner Rr (espresso) |
|
- | |||||
| 2 | 9763243 | Cap, Burner Lf - Rf (grey) |
|
$ 49.88 | |||||
| 2 | 3192488 | Cap, Burner (lf, Rf) (black) |
|
$ 40.03 | |||||
| 2 | 9763248 | Cap, Burner Lr (espresso) |
|
- | |||||
| 2 | 9763244 | Cap, Burner Lr (grey) |
|
$ 47.50 | |||||
| 2 | 3192487 | Cap, Burner Lr (black) |
|
$ 34.52 | |||||
| 4 | WP4455981 | Burner (lf-rf) (Replaces: 4455981) |
|
Immediately | $ 91.90 | ||||
| 4 | 4455979 | Burner (rr) |
|
$ 28.52 | |||||
| 4 | WP4455980 | Burner (lr) (Replaces: 4455980) |
|
$ 65.21 | |||||
| 5 | 8195546 | Cooktop (biscuit) (Replaces: 8272743) |
|
- | |||||
| 5 | 8272251 | Cooktop (white) |
|
- | |||||
| 5 | 8272253 | Cooktop (black) |
|
- | |||||
| 6 | 8523856 | Panel, Manifold (biscuit) |
|
- | |||||
| 6 | 8523855 | Panel, Manifold (black) |
|
$ 176.18 | |||||
| 6 | WP8523854 | Panel, Manifold (white) (Replaces: 8523854) |
|
$ 290.58 | |||||
| 7 | 8522626 | Knob, Control (2) (biscuit) |
|
- | |||||
| 7 | 8273279 | Knob, Control (2) (black) |
|
$ 18.22 | |||||
| 7 | 8522623 | Knob, Control (2) (white) |
|
$ 39.24 | |||||
| 8 | 8522628 | Knob, Accusimmer (biscuit) |
|
- | |||||
| 8 | 8522625 | Knob, Accusimmer (white) |
|
$ 69.56 | |||||
| 8 | 8273280 | Knob, Accusimmer (black) |
|
- | |||||
| 9 | 8522627 | Knob, Powerburner (biscuit) |
|
- | |||||
| 9 | 8273281 | Knob, Powerburner (black) |
|
- | |||||
| 9 | 8522624 | Knob, Powerburner (white) |
|
$ 17.09 | |||||
| 12 | 9762229 | Grate (espresso) |
|
- | |||||
| 12 | 9763283 | Grate (black) |
|
- | |||||
| 12 | 9762228 | Grate (gray) |
|
- | |||||
| 14 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
