SELECT A DIAGRAM

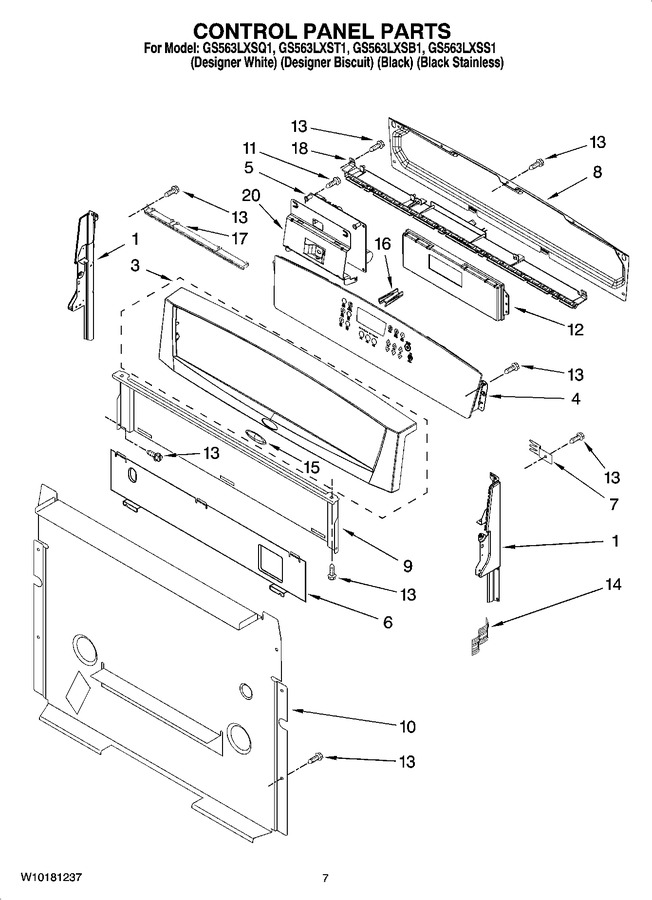

01 - Cooktop Parts


02 - Drawer & Broiler Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Control Panel Parts


06 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219665		Endcap (right Hand-black)   (Replaces: W10009090)				$ 40.44
1	W11219365		Endcap (left Hand White)   (Replaces: W10009040)				$ 40.43
1	W10009060		Endcap (left Hand Biscuit)		Appelez-nous	-
1	W11219664		Endcap (left Hand-black)   (Replaces: W10009080)				$ 146.50
1	W11219370		Endcap (right Hand White)   (Replaces: W10009050)				$ 57.93
1	W11230612		Endcap (right Hand Biscuit)   (Replaces: W10009070)		Appelez-nous	-
3	9762588		Panel, Control (unvsl Slvr For Ss)		Appelez-nous	-
3	9762586		Panel, Control (black)		Appelez-nous	-
3	9762585		Panel, Control (white)		Appelez-nous	-
3	9762587		Panel, Control (biscuit)		Appelez-nous	-
4	9763262		Bracket, Control (black)				$ 235.20
4	9763252		Bracket, Control (biscuit)		Appelez-nous	-
4	9763256		Bracket, Control (white)		Appelez-nous	-
5	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 393.86
6	8053505		Shield, Lower Heat				$ 157.99
7	8523412		Bracket, Support				$ 159.90
8	9756366		Cover, Upper		Appelez-nous	-
9	8053910		Shield, Heat		Appelez-nous	-
10	9760190		Cover, Lower		Appelez-nous	-
11	WP8273564		Clip, Upper Cover   (Replaces: 8273564)				$ 12.06
12	W10116542		Control, Range				$ 334.05
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
14	W10155287		Cnnctr Cbl, Flex				$ 38.17
15	9757613		Nameplate				$ 121.14
16	9757490		Support, Glass		Appelez-nous	-
17	9762589		Module, Light		Appelez-nous	-
18	9762855		Brkt-mntg, Console		Appelez-nous	-
20	9762253		Bracket, Dsi		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
