SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

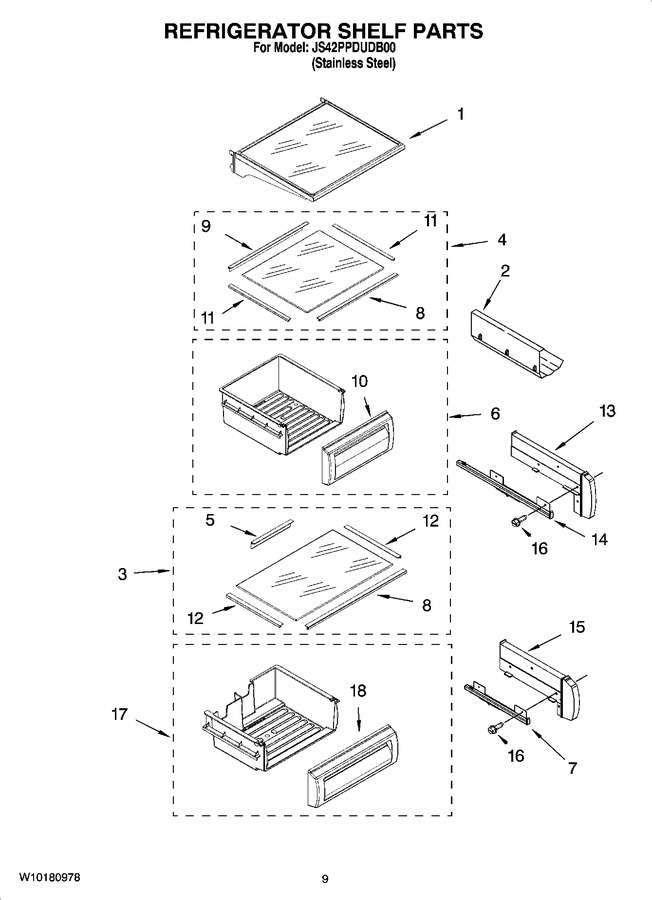

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10141494		Shelf Assembly		Appelez-nous	-
2	W10777924		Rack, Wine   (Replaces: 2179404)				$ 23.60
3	W10151215		Assembly, Meat Pan Cover				$ 108.30
4	W10151213		Assembly, Crisper Cover		Appelez-nous	-
5	2257582		Trim, Glass Rear		Appelez-nous	-
6	W10407624		Crisper Pan (2)   (Replaces: 2252412)				$ 168.99
7	2302954		Slide, Meat Pan (left Side)				$ 327.13
7	2302955		Slide, Meat Pan (right Side)				$ 326.84
8	2302831		Trim, Glass Front		Appelez-nous	-
9	2256254		Trim, Glass Rear		Appelez-nous	-
10	2256248		Front, Crisper Pan		Appelez-nous	-
11	2252255		Trim, Glass Side Crisper Pan		Appelez-nous	-
12	2256250		Trim, Glass Side Meat Pan		Appelez-nous	-
13	2256223		Spacer, Crisper (left Side (2))				$ 80.47
13	2256222		Spacer, Crisper (right Side (2))				$ 84.99
14	2302957		Slide, Crisper (left Side)				$ 217.46
14	2302956		Slide, Crisper (right Side)				$ 284.50
15	2256244		Spacer, Meat Pan (right Side)				$ 98.76
15	2256243		Spacer, Meat Pan (left Side)				$ 79.09
16	WP8533928		Screw (left Side- (8-18 X .750))   (Replaces: 8533928)			Immediately	$ 7.82
16	W11830745		Screw (right Side- (8-18 X 1.375))   (Replaces: 8533929)		Appelez-nous	-
17	W10407627		Pan Assembly Meat   (Replaces: 2256369)				$ 167.40
18	WP2256366		Front, Meat Pan   (Replaces: 2256366)				$ 181.07

    View Diagram in Separate Window       Print Part List
