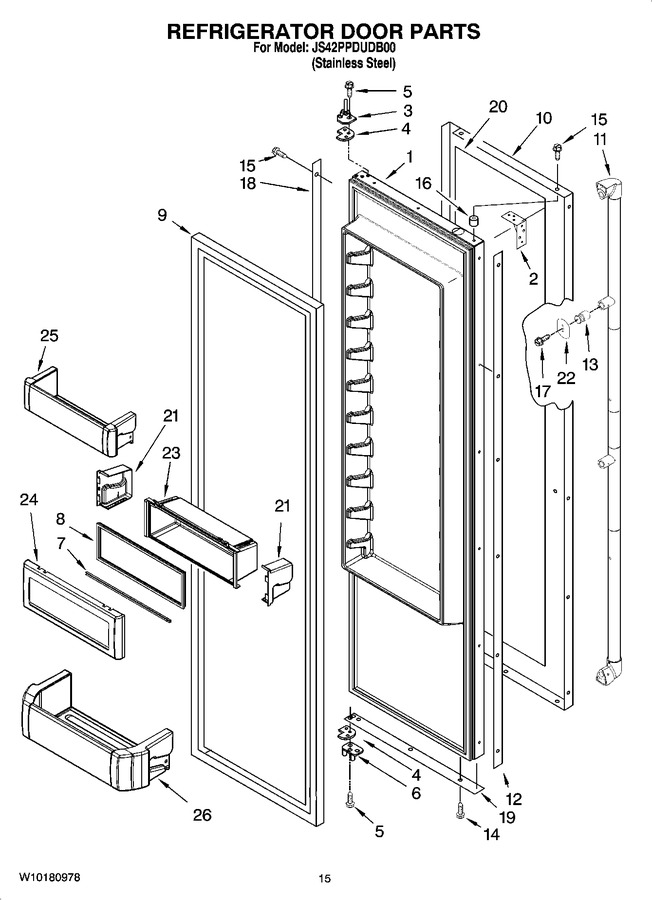

Diagram #	Part Number	Description	Availability	Ships	Price
1	2252330	Refrigerator Door Panel (includes Item 9)	Appelez-nous	-
2	2258951	Brace, Door Corner			$ 33.35
3	W11724512	Hinge Assembly, Top (Replaces: 2266854)			$ 297.62
4	W11673500	Spacer-door, Top & Bottom (Replaces: 2316804)		Immediately	$ 108.07
5	W11474472	Screw (Replaces: 489282)		Immediately	$ 8.02
6	2302878	Hinge Assembly, Bottom		Immediately	$ 86.68
7	W11448696	Rail, Lid (Replaces: 2222796)			$ 153.99
8	W11448696	Gasket, Utility Bin (Replaces: 2222982)			$ 153.99
9	WP2266902	Door Gasket, Magnetic (Replaces: 2222811)			$ 314.57
10	W10144969	Skin, Door (stainless Steel)	Appelez-nous	-
11	12859108	Handle, Door (stainless Steel)			$ 284.63
12	2309060	Spacer, Door-skin (handle Side) (for Stainless Steel Model)	Appelez-nous	-
13	WPW10153450	Stud, Mounting (Replaces: W10153450)			$ 83.10
14	W10759522	Screw (Replaces: 488568)			$ 7.75
15	WP8281250	Screw, 8-15 X .500 (stainless Steel) (Replaces: 8281250)			$ 10.88
16	2005433	Spacer, Door-skin (top)			$ 22.22
17	WP308544	Screw, Handle (Replaces: 308544)		Immediately	$ 7.76
18	2005030	Spacer, Door-skin (hinge Side)	Appelez-nous	-
19	2004934	Spacer, Door-skin (bottom)	Appelez-nous	-
20	2005326	Filler, Door	Appelez-nous	-
21	WPW10323172	End Cap (right Side) (Replaces: 2222919)			$ 8.19
22	W10127710	Plate, Door-handle		Immediately	$ 24.70
23	W10323042	Bin, Utility Center (Replaces: 2222922)			$ 213.27
24	W11553221	Door, Utility Bin (Replaces: 2257616)		Immediately	$ 66.32
25	W10323599	Bin, Door (3) (Replaces: 2222773)			$ 139.63
26	W10323747	Bin, Door (Replaces: 2222770)			$ 138.44
21A	WPW10323173	End Cap (left Side) (Replaces: 2222920)			$ 8.19
