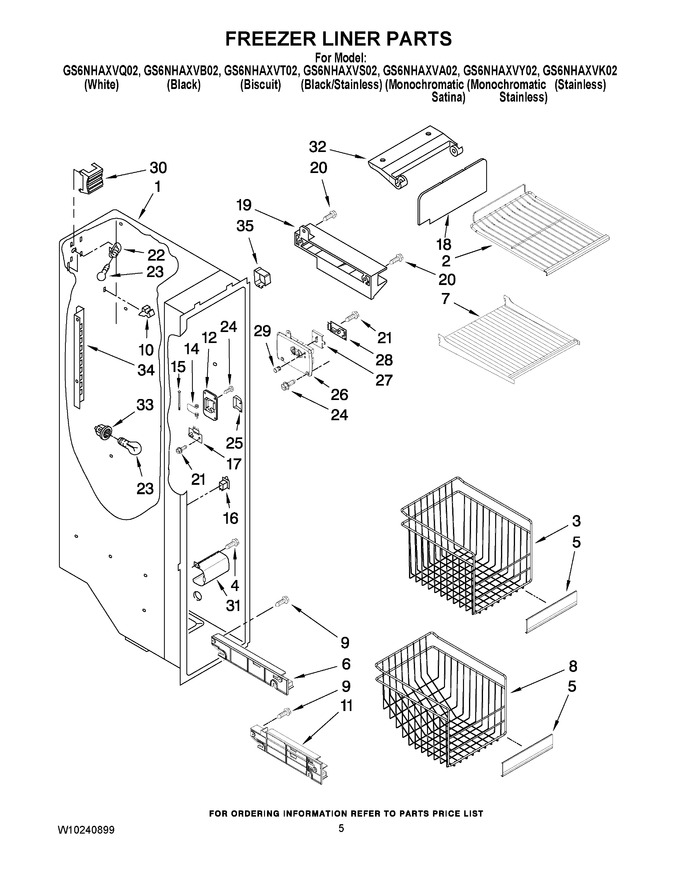

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Aseviceable Part)		Appelez-nous	-
2	2211746K		Shelf, Slide Out		Appelez-nous	-
3	2301190		Basket, Tall				$ 90.43
4	W10142289		Screw   (Replaces: 3400893)				$ 9.15
5	2195905K		Trim, Basket		Appelez-nous	-
6	2301289		Shelf Track (right Side)				$ 86.80
6	2301290		Shelf Track (left Side)				$ 134.88
7	2205837K		Shelf (2)				$ 42.67
8	2301191		Basket, Sloped				$ 96.19
9	W10759522		Screw (8)   (Replaces: W10004810)				$ 7.75
10	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
11	2301293		Shelf Track, Dual (right Side)		Appelez-nous	-
11	2301294		Shelf Track, Dual (left Side)		Appelez-nous	-
12	WP2198587		Cover, Emitter   (Replaces: 2198587)				$ 105.55
14	WP2198635		Spring   (Replaces: 2198635)				$ 87.08
15	WP2198634		Pin   (Replaces: 2198634)				$ 17.76
16	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
17	W11629974		P.c. Board Emitter   (Replaces: W10193840)			Immediately	$ 401.07
18	WP2255720		Cover, Ice Maker   (Replaces: 2255720)				$ 74.82
19	2212321		Slide, Ice Maker Mounting				$ 67.14
20	WP489478		Screw   (Replaces: W10001260)				$ 7.75
21	2006254		Screw   (Replaces: 489214)				$ 13.13
22	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
23	W11679940		Light Bulb   (Replaces: W10194422)			Immediately	$ 11.30
24	WPW10142283		Screw   (Replaces: W10142283)				$ 9.84
25	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 48.27
26	W10173569		Cover, Receiver				$ 66.93
27	2315398		Slide, Ice Maker Shut Off				$ 10.90
28	W11629974		P.c. Board, Receiver   (Replaces: W10193666)			Immediately	$ 401.07
29	WP2198643		Lens   (Replaces: 2198643)				$ 8.18
30	2198589		Light Shield		Appelez-nous	-
31	W11298978		Light Lens   (Replaces: 2212340)				$ 93.88
32	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.19
33	WPW10119935		Socket   (Replaces: 2155597)				$ 101.10
34	2198609		Light Ladder, Left Side				$ 42.40
34	2198610		Light Ladder, Right Side				$ 63.20
35	2303234		Shield, Wiring		Appelez-nous	-
