SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts

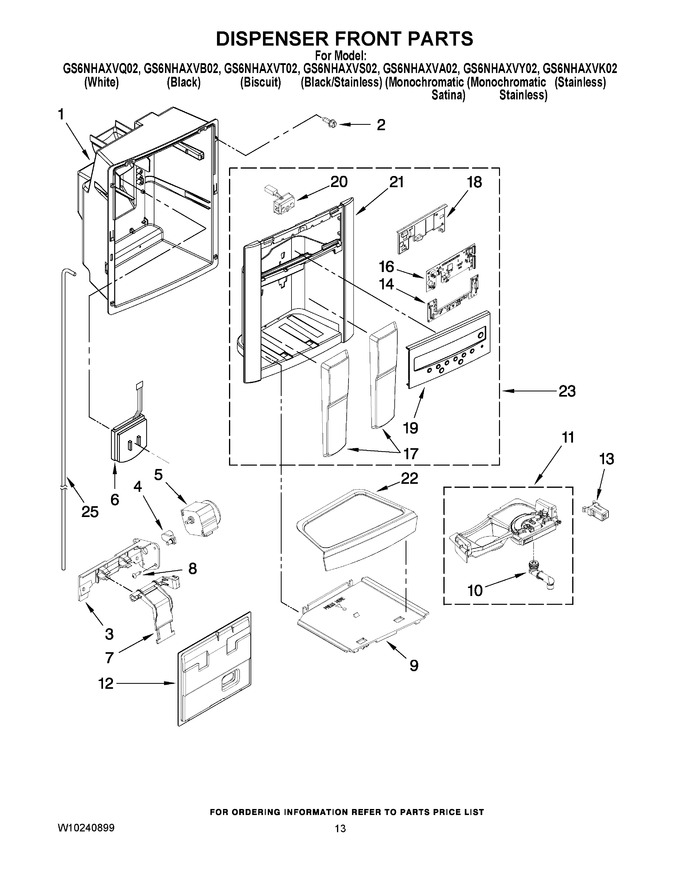

08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP8281163		Screw (4)   (Replaces: 8281163)			Immediately	$ 10.19
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 96.76
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 96.97
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 99.16
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 24.85
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 88.22
8	WP4449745		Screw (2)   (Replaces: 4449745)				$ 7.49
9	2322626AP		Grille, Slide (apollo Grey)		Appelez-nous	-
9	2322626T		Grille, Slide (biscuit)		Appelez-nous	-
9	2322626B		Grille, Slide (black)		Appelez-nous	-
9	2322626W		Grille, Slide (white)		Appelez-nous	-
10	W10187441		Spigot				$ 119.98
11	2322658MG		Separator Assembly (midnight Grey)		Appelez-nous	-
11	2322658T		Separator Assembly (biscuit)		Appelez-nous	-
11	2322658S		Separator Assembly (stainless)		Appelez-nous	-
11	2322658W		Separator Assembly (white)		Appelez-nous	-
11	2322658B		Separator Assembly (black)		Appelez-nous	-
12	2323634		Cover, Dispenser Motor		Appelez-nous	-
13	WP2223877		Latch   (Replaces: 2223877)				$ 115.09
14	W10127842		Barrier, Moisture				$ 23.81
16	W10211153		Electronic Control (user Interface)				$ 253.94
17	2322750GM		Pad, Ice & Water (black, Stainless Model)		Appelez-nous	-
17	2322750AP		Pad, Ice & Water (mono Stainless Mono Satina Vcm And Biscuit Models)		Appelez-nous	-
17	2322750CG		Pad, Ice & Water (white Model)		Appelez-nous	-
18	2322743		Cover, Electronic Control				$ 33.35
19	2322770B		Facia, Front (black)				$ 74.47
19	2322770NO		Facia, Front (nickel One)		Appelez-nous	-
19	2322770S		Facia, Front (stainless)		Appelez-nous	-
19	2322770W		Facia, Front (white)		Appelez-nous	-
19	2322770T		Facia, Front (biscuit)		Appelez-nous	-
20	W10143528		Led Assembly		Appelez-nous	-
21	N/P		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	2322645NO		Tray, Housing (nickel One)		Appelez-nous	-
22	2322645W		Tray, Housing (white)		Appelez-nous	-
22	W10139837		Tray, Housing (stainless Steel)		Appelez-nous	-
22	2322645B		Tray, Housing (black)		Appelez-nous	-
22	2322645T		Tray, Housing (biscuit)		Appelez-nous	-
23	2322702W		Front Cover Assembly (includes Items 14, 16, 17, 18, 19, 20, & 21) (white)		Appelez-nous	-
23	2322702B		Front Cover Assembly (includes Items 14, 16, 17, 18, 19, 20, & 21) (black)		Appelez-nous	-
23	2322702T		Front Cover Assembly (includes Items 14, 16, 17, 18, 19, 20, & 21) (biscuit)		Appelez-nous	-
23	2322702NO		Front Cover Assembly (includes Items 14, 16, 17, 18,19, 20, & 21) (nickel One)		Appelez-nous	-
23	2322702S		Front Cover Assembly (includes Items 14, 16, 17, 18,19, 20, & 21) (stainless Steel)				$ 419.48
25	2323606		Tube, Door		Appelez-nous	-
