Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2303522W Refrigerator Door (includes Item 6) (white) Appelez-nous -
1 2303522B Refrigerator Door (includes Item 6) (black) Appelez-nous -
1 2303522T Refrigerator Door (includes Item 6) (biscuit) Appelez-nous -
1 2303522SB Refrigerator Door (includes Item 6) (stainless) Appelez-nous -
1 2303522LAP Refrigerator Door (includes Item 6) (mono Stainless) Appelez-nous -
1 2303522SAP Refrigerator Door (includes Item 6) (mono Satina) Appelez-nous -
1 2303522LB Refrigerator Door (includes Item 6) (stainless-vcm) Appelez-nous -
2 2255421 Dairy Door Special Order $ 34.76

3 2304952K Door Bin (2) Appelez-nous -
4 WP3400012 Screw   (Replaces: 3400012) Special Order $ 8.26

5 WPW10170540 Stud, Handle   (Replaces: 2219698) In-Stock Immediately $ 8.51

6 WPW10136734 Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326338) Special Order $ 335.39

6 2159083 Door Gasket, Magnetic (black)   (Replaces: 2221313) Special Order $ 251.49

6 2159075 Door Gasket, Magnetic (mist)   (Replaces: 2221302) In-Stock Immediately $ 333.00

7 WP2318736 Trivet   (Replaces: 2223727) Special Order $ 76.94

8 2254600T Handle (biscuit) Appelez-nous -
8 WP2254600B Handle (black)   (Replaces: 2254600B) Special Order $ 219.21

8 WP2254600W Handle (white)   (Replaces: 2254600W) Special Order $ 246.90

8 2254600S Handle (stainless) Special Order $ 106.71

9 WP488163 Screw   (Replaces: 488208) Special Order $ 7.92

10 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.39

11 WP489483 Screw   (Replaces: 489420) Special Order $ 11.41

12 2200082 Bracket, Door Stop (zinc) Special Order $ 5.83

12 2200082B Bracket, Door Stop (black) Special Order $ 42.44

13 W11366418 Screw   (Replaces: W10010140) In-Stock Immediately $ 15.79

14 2255420 Door Compartment Special Order $ 49.86

15 2255422 Frame, Can Rack Special Order $ 70.07

16 2255424 Air Diffuser Asm Appelez-nous -
17 2220214 Nameplate Special Order $ 32.43

18 2255423 Floor, Can Rack Appelez-nous -
19 2315057K Water Bottle Appelez-nous -
19 2223463K Door Bin Special Order $ 42.36


    View Diagram in Separate Window     Print Icon   Print Part List

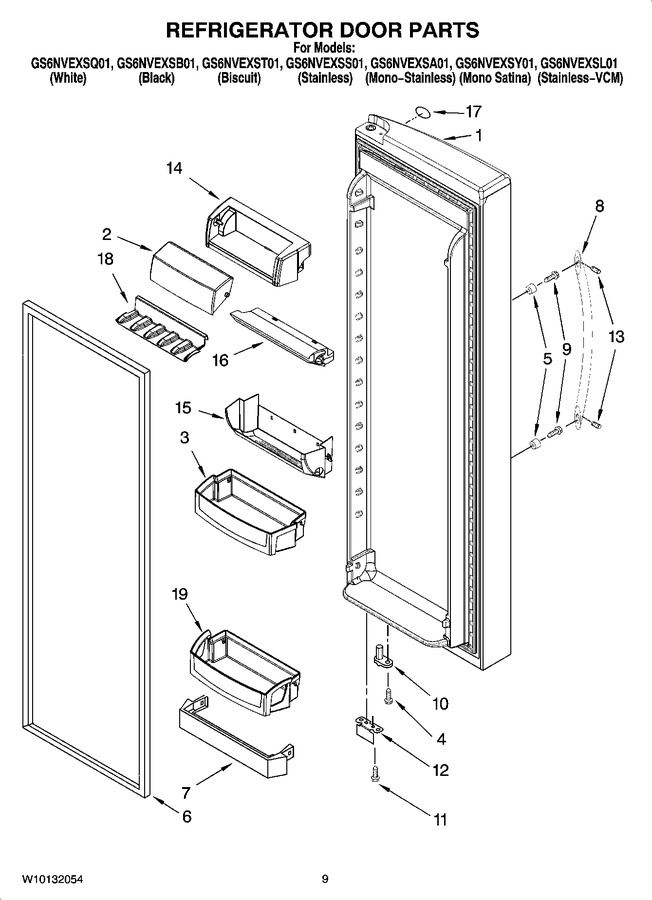

Diagram for GS6NVEXSS01
