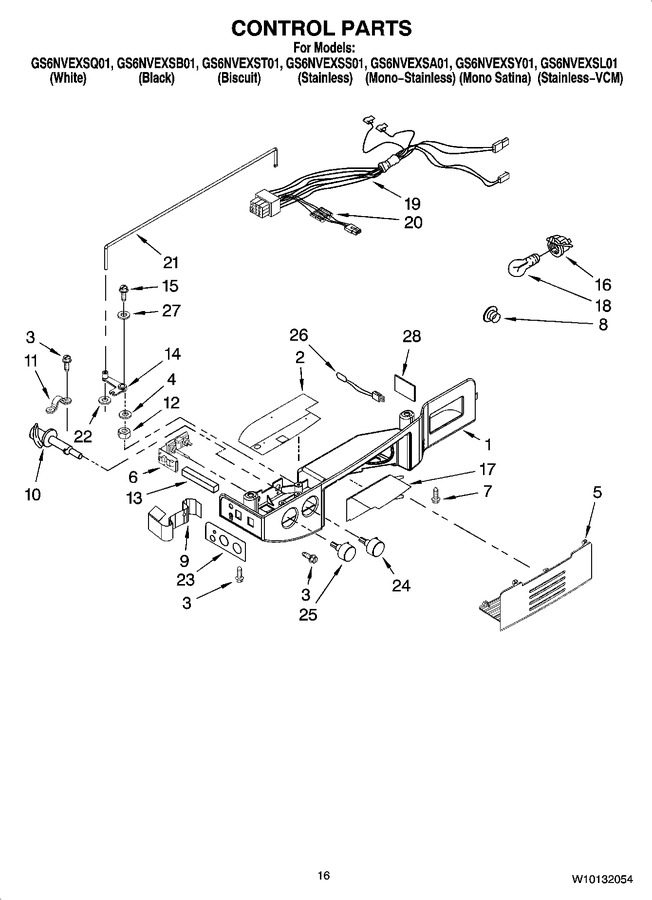

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2255222 | Control Box |
|
$ 72.46 | |||||
| 2 | 2261773 | Shield |
|
- | |||||
| 3 | WP3196557 | Screw (4) (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 4 | 3400972 | Washer |
|
- | |||||
| 5 | 2255225 | Lens, Light |
|
- | |||||
| 6 | 2304103 | Electronic Control |
|
$ 184.87 | |||||
| 7 | WPW10141645 | Screw (2) (Replaces: 489084) |
|
$ 7.67 | |||||
| 8 | 940014 | Hole Plug |
|
$ 18.33 | |||||
| 9 | 2305538 | Shield, Electrical (internal) |
|
- | |||||
| 10 | 2255226 | Cam Assembly |
|
- | |||||
| 11 | 2255413 | Bearing Body |
|
- | |||||
| 12 | 3400971 | Nut, Hex |
|
- | |||||
| 13 | 2188928 | Foam, Shield |
|
- | |||||
| 14 | 2255227 | Pivot Arm |
|
- | |||||
| 15 | 627068 | Screw |
|
$ 12.12 | |||||
| 16 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 17 | 2255666 | Shield, Heat |
|
- | |||||
| 18 | W11679940 | Light Bulb (Replaces: 2255743) |
|
Immediately | $ 11.30 | ||||
| 19 | 2187965 | Control Box Harness (includes 20) |
|
$ 104.10 | |||||
| 20 | 2308165 | Ferrite Bead |
|
- | |||||
| 21 | 2255228 | Connecting Rod |
|
- | |||||
| 22 | 489285 | Fastener, Push-on |
|
- | |||||
| 23 | 2255611 | Escutcheon, Control Box |
|
- | |||||
| 24 | 2255232 | Knob, Rc |
|
- | |||||
| 25 | 2255992 | Knob, Fc |
|
- | |||||
| 26 | WP2188819 | Thermistor (Replaces: 2188819) |
|
Immediately | $ 46.01 | ||||
| 27 | 489203 | Spring Washer |
|
- | |||||
| 28 | 2261265 | Air Seal, Thermistor |
|
- |
