SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts

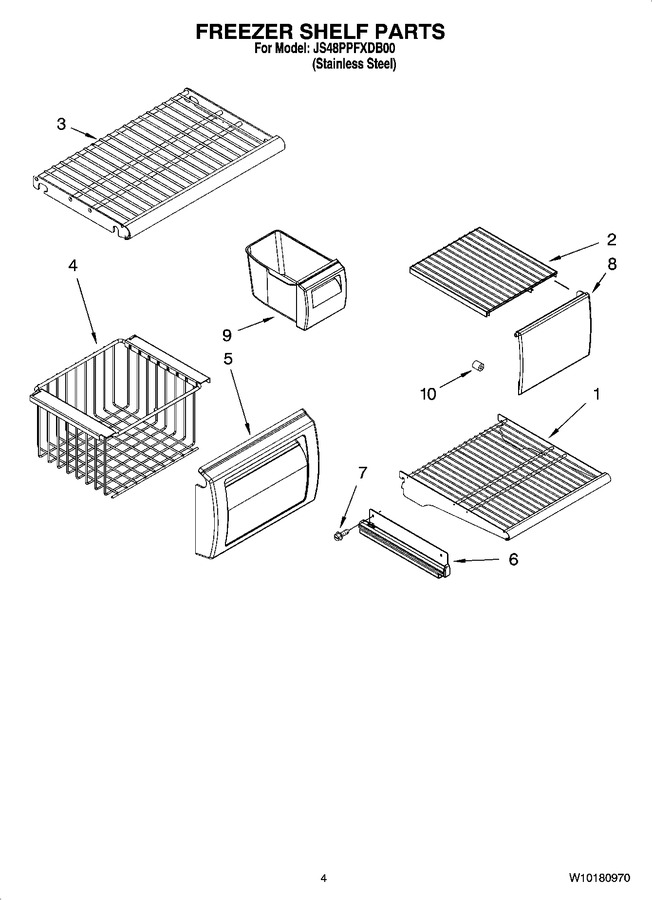

03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2302869		Wire, Shelf (2)		Appelez-nous	-
2	W10213535		Cover, Shelf   (Replaces: 2302872)				$ 96.54
3	2302884		Shelf, Fixed (2)				$ 301.33
4	2259086		Basket		Appelez-nous	-
5	WP2256271		Front, Basket   (Replaces: 2256271)				$ 93.43
6	2259317		Slide, Basket (right Side)				$ 222.18
6	WP2259318		Slide, Basket (left Side)   (Replaces: 2259318)			Immediately	$ 302.24
7	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.82
8	2266935		Door, Ice				$ 226.12
9	WP2266932		Bucket, Ice   (Replaces: 2266932)				$ 165.84
10	2266955		Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
