Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2252331 Refrigerator Door (includes 9) Special Order $ 1,681.37

2 2258951 Brace, Door Corner Special Order $ 33.35

3 W11724512 Hinge Assembly, Top   (Replaces: 2266854) Special Order $ 312.50

4 W11673500 Spacer-door, Top & Bottom   (Replaces: 2316804) In-Stock Immediately $ 108.07

5 W11474472 Screw   (Replaces: 489282) In-Stock Immediately $ 8.63

6 2302878 Hinge Assembly, Bottom In-Stock Immediately $ 91.01

7 W11348580 Rail, Lid   (Replaces: 2222797) In-Stock Immediately $ 162.13

8 W11348580 Gasket, Utility Bin   (Replaces: 2222983) In-Stock Immediately $ 162.13

9 WP2266903 Door Gasket, Magnetic   (Replaces: 2222812) In-Stock Immediately $ 340.02

10 W10144970 Skin, Door Appelez-nous -
11 12859108 Handle, Door Special Order $ 284.63

12 2309060 Spacer, Door (handle Side) Appelez-nous -
13 WPW10153450 Stud, Handle (4)   (Replaces: W10153450) Special Order $ 87.26

14 W10759522 Screw   (Replaces: 488568) Special Order $ 8.24

15 WP8281250 Screw, 8-15 X .500 (stainless Steel)   (Replaces: 8281250) Special Order $ 11.42

16 2005433 Spacer, Door-skin (top) Special Order $ 23.33

17 WP308544 Screw (4)   (Replaces: 308544) In-Stock Immediately $ 8.30

18 2005030 Spacer, Door (hinge Side) Appelez-nous -
19 WP2257343 Spacer, Door-skin (bottom)   (Replaces: 2004935) Special Order $ 86.72

20 2005327 Filler, Door Appelez-nous -
21 WPW10323172 End Cap (right Side)   (Replaces: 2222919) Special Order $ 8.60

22 W10127710 Plate, Door-handle (4) In-Stock Immediately $ 25.94

23 W11348580 Bin, Utility Center   (Replaces: 2222923) In-Stock Immediately $ 162.13

24 W11348580 Door, Utility Bin   (Replaces: 2257617) In-Stock Immediately $ 162.13

25 W11752086 Bin, Door (3)   (Replaces: 2222774) Special Order $ 68.19

26 W10323748 Bin, Door Door   (Replaces: 2222771) Special Order $ 121.78

21A WPW10323173 End Cap (left Side)   (Replaces: 2222920) Special Order $ 8.60


    View Diagram in Separate Window     Print Icon   Print Part List

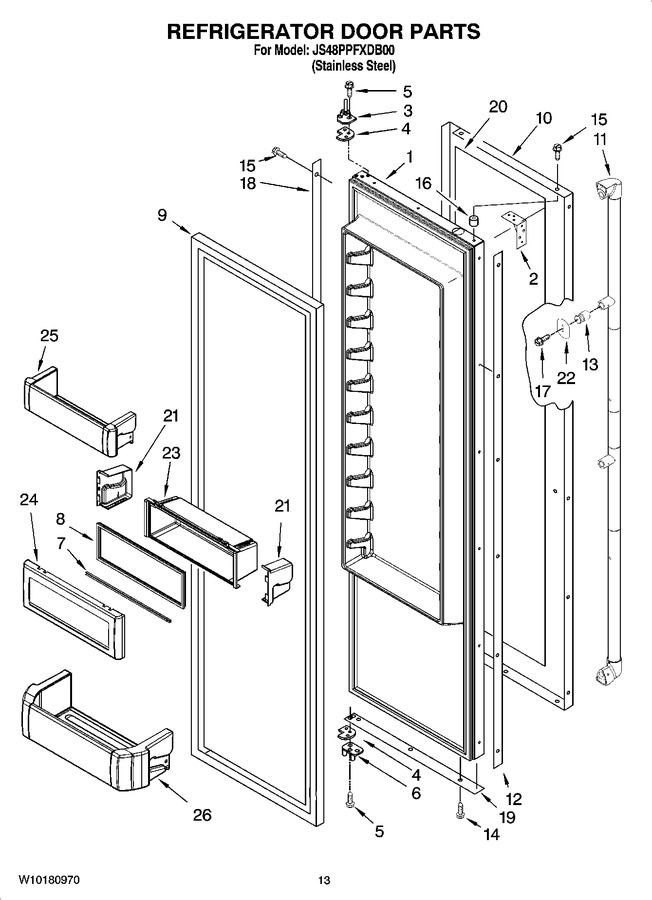

Diagram for JS48PPFXDB00
