SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Compressor (series 50)
02 - Compressor (series 50)

Diagram for 03 - Compressor (series 51)
03 - Compressor (series 51)

Diagram for 04 - Controls
04 - Controls

Diagram for 05 - Crisper Assembly
05 - Crisper Assembly

Diagram for 06 - Evap Fan Assy./crisp Light/water Filter
06 - Evap Fan Assy./crisp Light/water Filter

Diagram for 07 - Evaporator Assy./rollers/water Tank
07 - Evaporator Assy./rollers/water Tank

Diagram for 08 - Fountain
08 - Fountain

Diagram for 09 - Freezer Compartment
09 - Freezer Compartment

Diagram for 10 - Freezer Door
10 - Freezer Door

Diagram for 11 - Freezer Shelves
11 - Freezer Shelves

Diagram for 12 - Handles (jsd2690hes)
12 - Handles (jsd2690hes)

Diagram for 13 - Hinges
13 - Hinges

Diagram for 14 - Ice Bucket Assy.
14 - Ice Bucket Assy.

Diagram for 15 - Ice Maker
15 - Ice Maker

Diagram for 16 - Refrigerator Door
16 - Refrigerator Door

Diagram for 17 - Refrigerator Shelves
17 - Refrigerator Shelves

No Diagram Image Available
18 - Supplemental Information

Diagram for 19 - Wiring Information
19 - Wiring Information


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67005090 Handle, Extruded Door (stnls) 50 Appelez-nous -
2 12315101 Clip 50 Appelez-nous -
3 WP489399 Screw, Se   (Replaces: M0232929) 50 Special Order $ 6.95

4 67004548 Nameplate 50 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

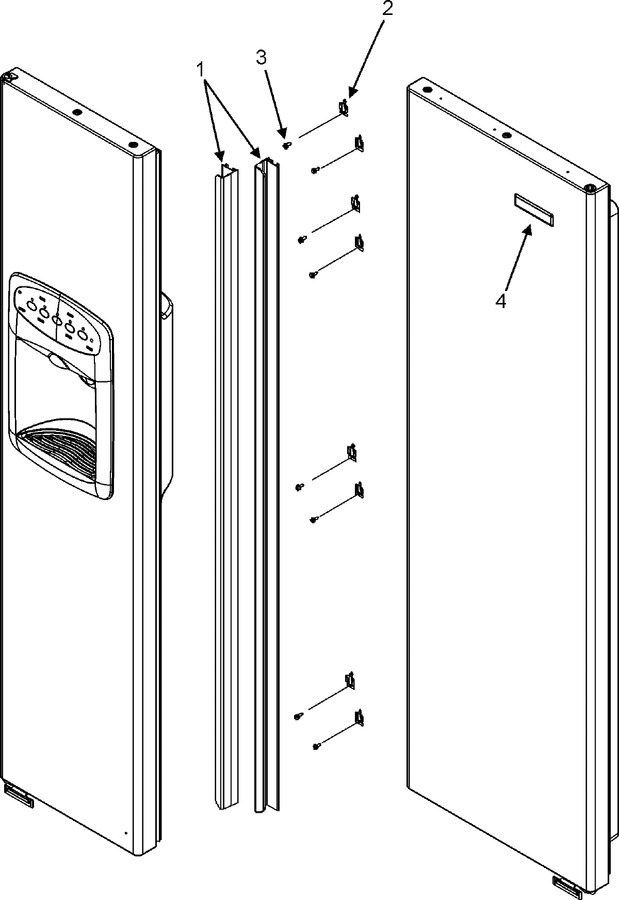

Diagram for JSD2690HES
