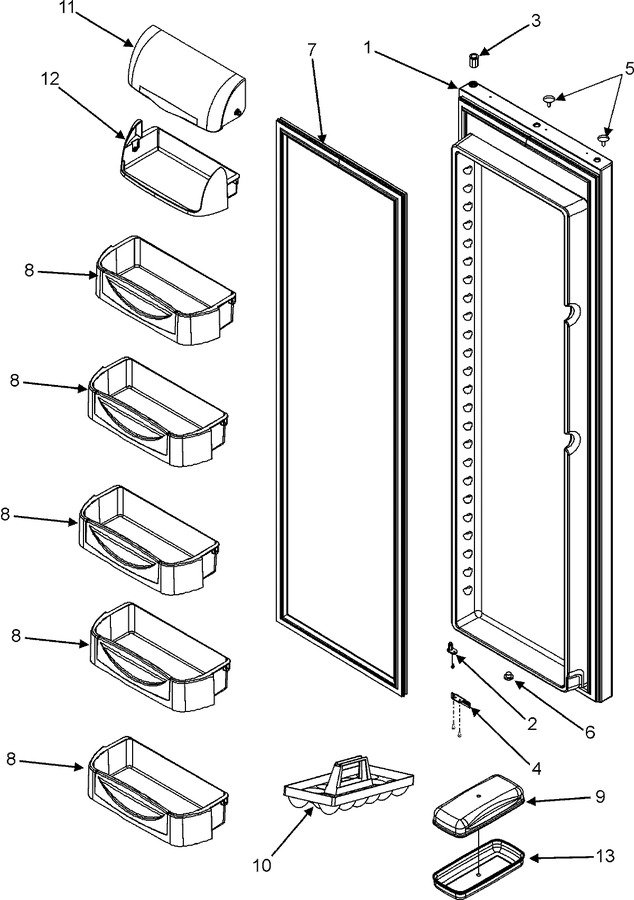

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67005088		Door Assy., Ref. Foam (stnls)	50	Appelez-nous	-
2	WP8281227		Screw, Tc   (Replaces: M0220432)	50			$ 10.44
2	R0181181		Closure, Door (blk)   (Replaces: 12113204)	50		Immediately	$ 7.19
3	10961002		Bushing, Door (blk)	50	Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: M0211018)	50			$ 8.00
4	12636401B		Stop, Door (blk)	50			$ 10.80
5	M0311607		Plug, Button (gry)	50	Appelez-nous	-
6	A3080001		Plug, Button (blk)	50	Appelez-nous	-
7	W10840101		Gasket, Ref. Door (blk)   (Replaces: 67003965)	50			$ 311.67
8	67004540		Bucket Assy., Ref. Door	50			$ 32.69
9	67004404		Tray, Butter	50	Appelez-nous	-
10	60066-1		Tray, Egg	50	Appelez-nous	-
11	67001325		Door, Dairy	50	Appelez-nous	-
12	67002304		Tray, Dairy	50	Appelez-nous	-
13	67004405		Lid, Butter Tray	50	Appelez-nous	-
