SELECT A DIAGRAM

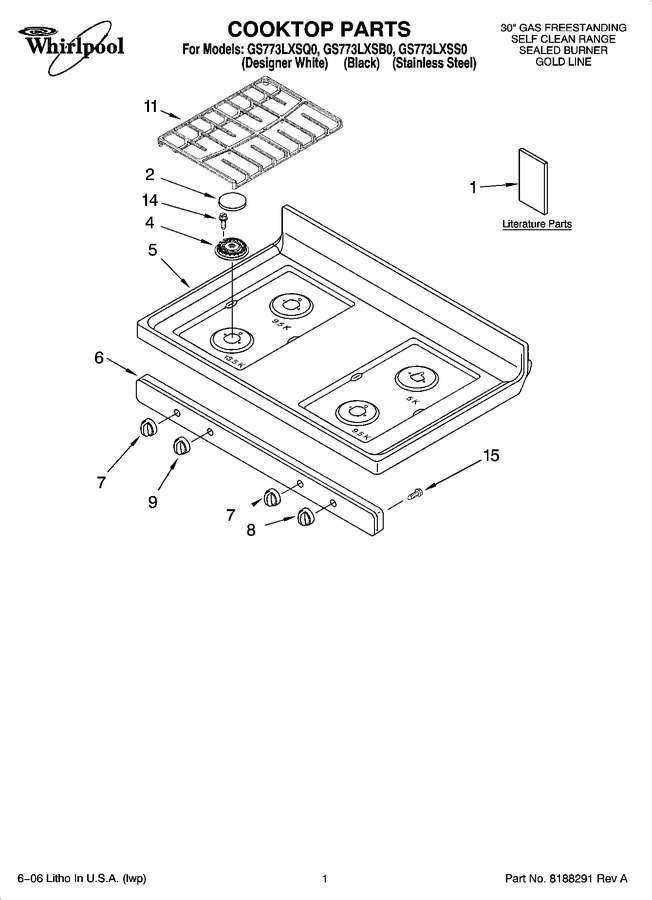

01 - Cooktop Parts


02 - Drawer & Broiler Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Control Panel Parts


06 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762998		Installation Instructions		Appelez-nous	-
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	9757143		Anti-tip Template (english/french)		Appelez-nous	-
1	9763003		Owners Manual		Appelez-nous	-
1	9762984		Tech Sheet		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
1	W10106820		Insert-cktp Lckout		Appelez-nous	-
2	3192486		Cap, Burner Rr (black)				$ 33.24
2	9763242		Cap, Burner (rr) (white)				$ 102.15
2	9763244		Cap, Burner (lr) (white)				$ 47.50
2	3192487		Cap, Burner Lr (black)				$ 34.52
2	9763243		Cap, Burner (lf, Rf) (white)				$ 49.88
2	3192488		Cap, Burner (lf, Rf) (black)				$ 40.03
4	WP4455981		Burner (lf)   (Replaces: 4455981)			Immediately	$ 91.90
4	4455979		Burner (rr)				$ 28.52
4	WP4455980		Burner (lr, Rr)   (Replaces: 4455980)				$ 65.21
5	8272251		Cooktop (white)		Appelez-nous	-
5	8272253		Cooktop (black)		Appelez-nous	-
6	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 290.58
6	8523855		Panel, Manifold (black)				$ 176.18
7	8522623		Knob, Control (2) (white)				$ 39.24
7	8273279		Knob, Control (2) (black)				$ 18.22
8	8273280		Knob, Accusimmer (black)		Appelez-nous	-
8	8522624		Knob, Accusimmer (white)				$ 17.09
9	8273281		Knob, Powerburner (black)		Appelez-nous	-
9	8522625		Knob, Powerburner (white)				$ 69.56
11	9762228		Grate, Burner (2) (gray)		Appelez-nous	-
11	9763283		Grate, Burner (2) (black)		Appelez-nous	-
14	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
