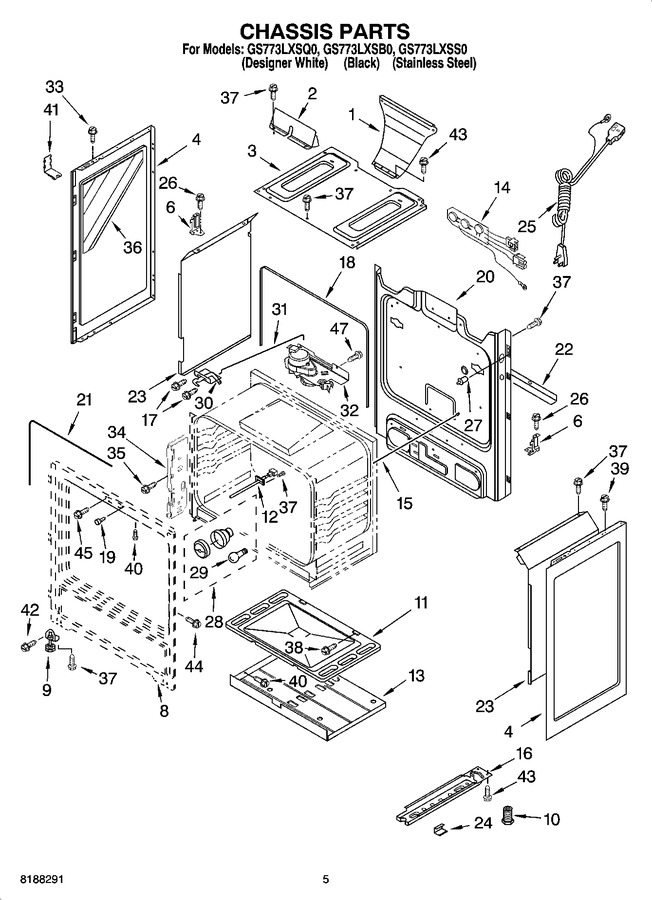

04 - Chassis Parts


05 - Control Panel Parts


06 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Flue Box   (Replaces: W10012240)				$ 150.29
2	WP8272747		Shield, Flue   (Replaces: 8272747)				$ 70.96
3	W11379351		Burner Box   (Replaces: 8273036)				$ 61.13
4	WPW10575396		Panel, Side (2) (white-textured)   (Replaces: 8053830)				$ 148.71
4	W11730303		Panel, Side (2) (black-textured)   (Replaces: 8053832)			Immediately	$ 164.83
6	8523249		Brkt, Manifold Mtg		Appelez-nous	-
9	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 82.97
10	WPW10058460		Foot, Rear (2)   (Replaces: 9761935)			Immediately	$ 7.85
11	WP3195097		Bottom, Oven   (Replaces: 3195097)				$ 237.71
12	WPW10181986		Sensor, Oven   (Replaces: 8273902)			Immediately	$ 106.83
13	8053967		Baffle, Burner				$ 300.91
14	9756911		Suppressor		Appelez-nous	-
15	9757239		Rod - Dr Switch				$ 91.78
16	W11818353		Rail, Base (2)   (Replaces: 9760314)				$ 59.68
17	W11169708		Screw (2)   (Replaces: 3196560)				$ 13.36
18	W10008830		Seal, Oven Flange				$ 6.32
19	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 53.39
20	9757098		Back, Main		Appelez-nous	-
21	W11542153		Seal, Oven Door   (Replaces: 8522416)			Immediately	$ 50.20
22	8053971		Brace, Main Back				$ 7.82
23	9761448		Retainer, Insul. (right Hand)		Appelez-nous	-
23	9761449		Retainer, Insul. (left Hand)				$ 317.63
24	3196576		Clip, Panel (6)		Appelez-nous	-
25	W11582239		Cord, Power   (Replaces: 9757891)				$ 16.75
26	WP4449743		Screw   (Replaces: 4449743)				$ 7.19
27	WP9757262		Switch, Door   (Replaces: 9757262)			Immediately	$ 144.44
28	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 87.01
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
30	WP9761013		Latch, Door   (Replaces: 9761013)				$ 244.15
31	W10078370		Rod, Latch   (Replaces: 3196960)				$ 90.70
32	WPW10107820		Latch, Rear Asm   (Replaces: 9757241)				$ 294.81
33	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
34	W10647259		Bracket-mounting   (Replaces: 9760407)			Immediately	$ 9.32
35	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.82
36	9761490		Insulation		Appelez-nous	-
37	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
38	3196152		Screw				$ 8.99
39	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 7.75
40	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.02
41	9761512		Clip, Mounting		Appelez-nous	-
42	WP98008545		Screw   (Replaces: 3196179)				$ 17.71
43	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
44	WP7101P246-60		Screw   (Replaces: 3196177)				$ 7.75
45	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 7.75
47	8053915		Insulation, Vent   (Replaces: 8272613)				$ 12.44
47	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.19
47	W11684915		Insulation, Wrap   (Replaces: 8524099)				$ 117.75
47	W11688737		Insulation, Back   (Replaces: 8272614)				$ 116.89
