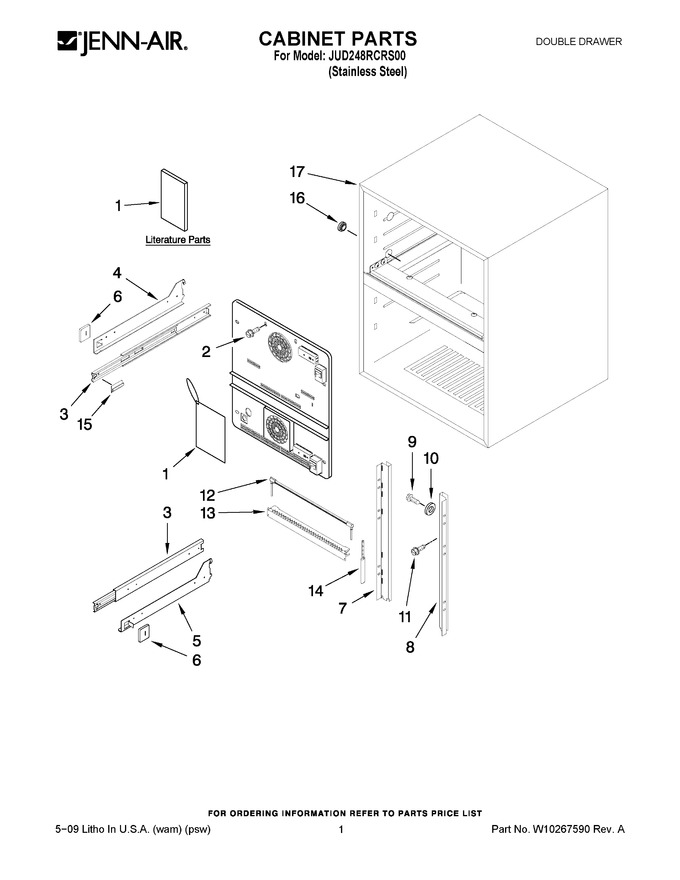

01 - Cabinet Parts
02 - Liner Parts
03 - Upper Drawer Parts
04 - Lower Drawer Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10130023 | Use & Care Guide |
|
- | |||||
| 1 | W10233837 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10275058 | Energy Guide |
|
- | |||||
| 1 | W10130022 | Installation Instructions |
|
- | |||||
| 2 | 4344793 | Screw |
|
- | |||||
| 3 | WPW10233777 | Rail Assy. (Replaces: W10233777) |
|
$ 349.36 | |||||
| 4 | W10275055 | Support Shelf, Lh (bottom Drawer) |
|
- | |||||
| 4 | W10233778 | Support Shelf, Lh (top Drawer) |
|
$ 34.04 | |||||
| 5 | W10233779 | Support Shelf, Rh (top Drawer) |
|
- | |||||
| 5 | W10275056 | Support Shelf, Rh (bottom Drawer) |
|
- | |||||
| 6 | W10270573 | Support Rubber A |
|
- | |||||
| 7 | W10270478 | Ladder, Lh |
|
- | |||||
| 8 | W10304194 | Ladder, Rh (Replaces: W10270479) |
|
- | |||||
| 9 | 4344794 | Screw |
|
- | |||||
| 10 | 4344795 | Washer |
|
- | |||||
| 11 | W10162986 | Screw & Washer |
|
- | |||||
| 12 | W11506487 | Defrost Heater (Replaces: W10204610) |
|
$ 108.76 | |||||
| 13 | 4344747 | Heat Shield |
|
$ 78.49 | |||||
| 14 | W10204621 | Thermal Fuse Assy. |
|
$ 178.10 | |||||
| 15 | W10204630 | Lead Wire Support |
|
- | |||||
| 16 | W10204632 | Liner Bushing |
|
- |
