SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Upper Drawer Parts


04 - Lower Drawer Parts

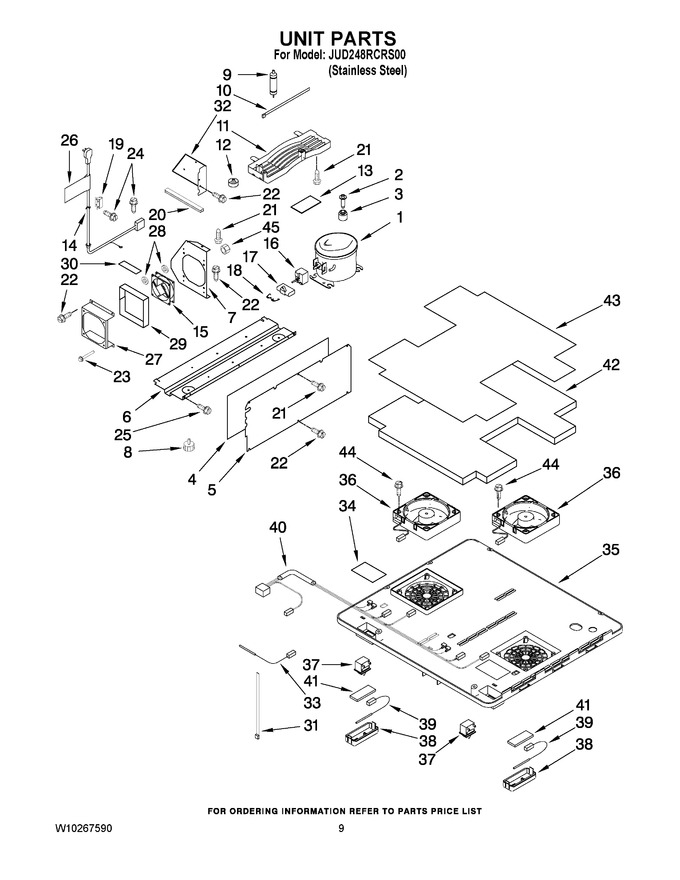

05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8201787		Compressor   (Replaces: 4344775)				$ 719.23
2	W10772873		Bolt   (Replaces: 4344780)		Appelez-nous	-
3	WP4344779		Grommet   (Replaces: 4344779)				$ 8.47
4	W10204672		Rear Insulation		Appelez-nous	-
5	4344786		Rear Cover		Appelez-nous	-
6	W10270491		Cabinet Base Plate		Appelez-nous	-
7	W10204674		Air Baffle				$ 127.68
8	W11106296		Leg   (Replaces: W10270480)				$ 19.03
9	W10163273		Dryer				$ 103.41
10	4344829		Cable Tie		Appelez-nous	-
11	W10163193		Drain Tray				$ 76.58
12	W10163276		Drain Trap				$ 90.13
13	W10163274		Vibration Rubber		Appelez-nous	-
14	WPW10204676		Power Cord   (Replaces: W10204676)				$ 113.02
15	W10204677		Condenser Motor				$ 351.23
16	WP4344776		Motor Starter   (Replaces: 4344776)				$ 177.65
17	4344837		Capacitor		Appelez-nous	-
18	WP4344836		5sp Clip   (Replaces: 4344836)				$ 86.44
19	W10270517		Clamp, Cord				$ 79.51
20	4344907		Edge Trim		Appelez-nous	-
21	4344825		Screw		Appelez-nous	-
22	4344832		Screw		Appelez-nous	-
23	W10270492		Bolt		Appelez-nous	-
24	4344826		Screw				$ 16.70
25	W10270481		Bolt		Appelez-nous	-
26	4344913		Warning Label		Appelez-nous	-
27	W10204687		Fan Cover		Appelez-nous	-
28	W10204688		Fan Bushingn		Appelez-nous	-
29	W10204689		Vibration Rubber A		Appelez-nous	-
30	W10204690		Vibration Rubber B		Appelez-nous	-
31	4344829		Cabel Tie		Appelez-nous	-
32	4344773		Bracket, Timer		Appelez-nous	-
33	W10205063		Defrost Sensor				$ 174.60
34	W10205062		Terminal Protector		Appelez-nous	-
35	W10204941		Fan Cover				$ 132.27
36	W10854409		Motor & Fan   (Replaces: W10204942)			Immediately	$ 313.91
37	W10270520		Door Switch		Appelez-nous	-
38	W10204945		Sensor Case		Appelez-nous	-
39	WPW10204946		Temp Sensor   (Replaces: W10204946)				$ 100.89
40	W10204947		Wire Harness		Appelez-nous	-
41	W10204948		Sensor Case Seal		Appelez-nous	-
42	W10204952		Insulation		Appelez-nous	-
43	W10205060		Plate Cover		Appelez-nous	-
44	W10205061		Screw		Appelez-nous	-
45	W10270493		Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
