01 - Cabinet Parts
02 - Liner Parts

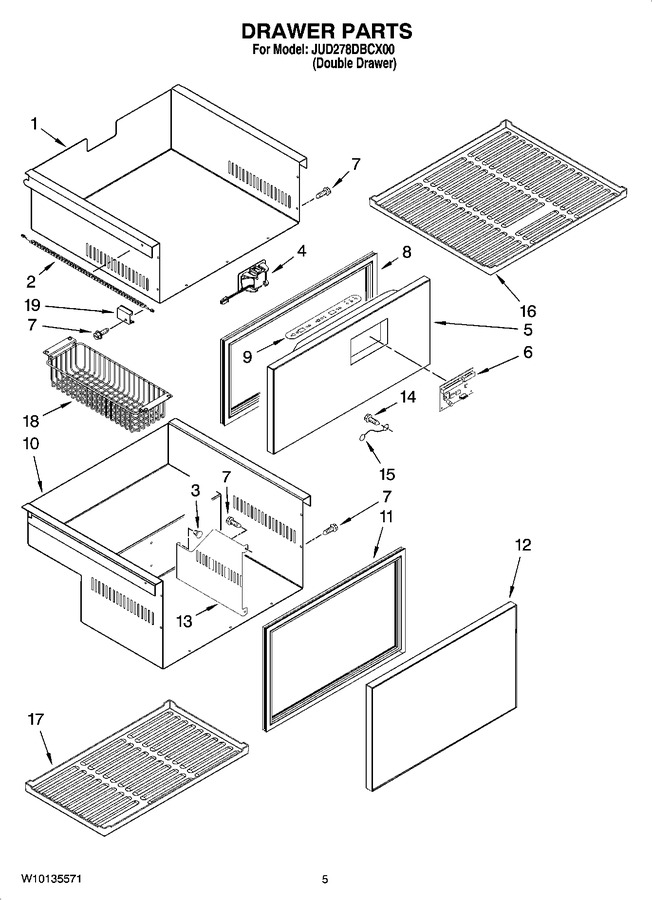

03 - Drawer Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2257847 | Drawer, Upper |
|
- | |||||
| 2 | 2310340 | Harness, Wiring (drawer) |
|
$ 60.47 | |||||
| 3 | 2258135 | Rivet, Plastic |
|
- | |||||
| 4 | 2258025 | Light Assembly |
|
- | |||||
| 5 | 2257951 | Drawer Front (upper) |
|
- | |||||
| 6 | 2304086 | Control, Electronic |
|
$ 252.77 | |||||
| 7 | 8534081 | Screw |
|
$ 7.81 | |||||
| 8 | 2258015 | Gasket, Upper Drawer |
|
- | |||||
| 9 | 2258374 | Overlay |
|
- | |||||
| 10 | 2257848 | Drawer, Lower |
|
- | |||||
| 11 | 2258016 | Gasket, Lower Drawer |
|
- | |||||
| 12 | 2257950 | Drawer Front (lower) |
|
- | |||||
| 13 | 2258131 | Divider |
|
- | |||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 15 | 2310033 | Wire, Ground |
|
- | |||||
| 16 | W10122742 | Mat, Upper Drawer |
|
- | |||||
| 17 | W10122740 | Mat, Lower Drawer |
|
- | |||||
| 18 | 2258000 | Basket (2) |
|
- | |||||
| 19 | 2258173 | Cover, Connector |
|
- |
