SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Drawer Parts

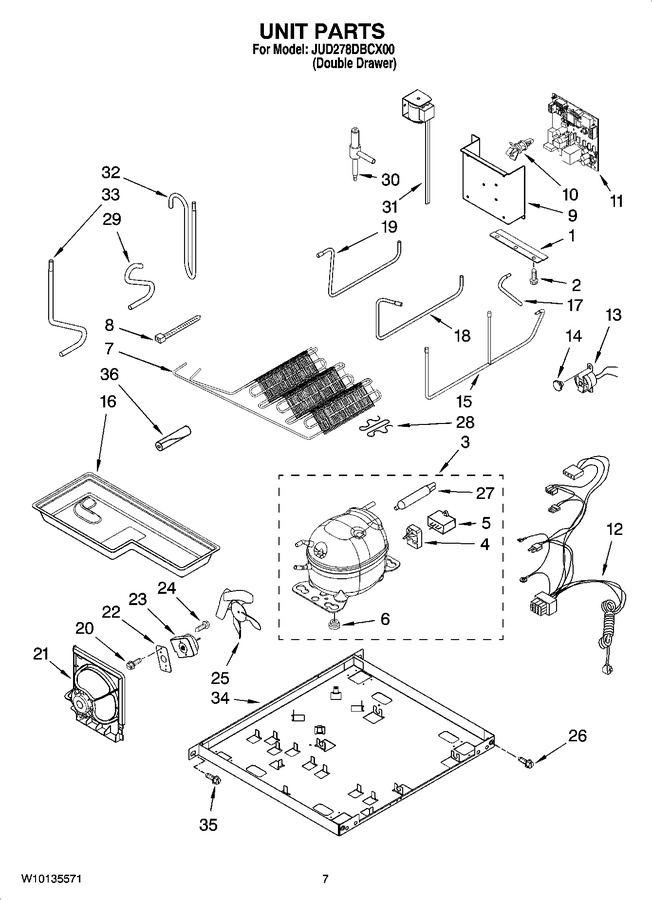

04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2257844		Bracket, Control Box		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489478)				$ 8.18
3	2257884		Compressor		Appelez-nous	-
4	2258026		Start-device Combination				$ 48.08
5	WPW10662129		Capacitor   (Replaces: 2169373)			Immediately	$ 58.86
6	W10852725		Grommet (6)   (Replaces: 2319835)				$ 8.09
7	2257869		Condenser		Appelez-nous	-
8	WPW10339879		Cable Tie   (Replaces: 857547)				$ 8.30
9	2257840		Box, Control Board		Appelez-nous	-
10	2223800		Spacer (5)				$ 17.50
11	2252184		Control Board (main)				$ 215.37
12	2310005		Harness, Unit (includes 13)		Appelez-nous	-
13	2258137		Bi-metal		Appelez-nous	-
14	54690		Plug, Button (2)		Appelez-nous	-
15	2257905		Tube, Suction		Appelez-nous	-
16	2257890		Tray, Evaporator		Appelez-nous	-
17	2258083		Tube, Process		Appelez-nous	-
18	2257902		Tube, Drier To Lower Valve		Appelez-nous	-
19	2257903		Tube, Drier To Upper Valve		Appelez-nous	-
20	WP8281196		Screw   (Replaces: 8281196)			Immediately	$ 7.55
21	2208157		Bracket, Fan		Appelez-nous	-
22	2301979		Plate, Motor				$ 94.77
23	W10124096		Motor, Fan   (Replaces: 2188729)			Immediately	$ 112.20
24	8281197		Screw		Appelez-nous	-
25	W11458267		Blade, Fan   (Replaces: 2225834)			Immediately	$ 25.19
26	3400515		Screw (2)		Appelez-nous	-
27	2258316		Drier		Appelez-nous	-
28	2163787		Clip, Mounting				$ 7.83
29	2257919		Tube, Discharge		Appelez-nous	-
30	2257924		Valve, Solenoid (2)				$ 137.92
31	2257537		Coil, Solenoid (2)		Appelez-nous	-
32	2258070		Tube, Heat Loop To Drier		Appelez-nous	-
33	2258071		Tube, Condenser To Heat Loop		Appelez-nous	-
34	2257876		Baseplate		Appelez-nous	-
35	3400524		Screw (2)				$ 13.28
36	WP2158826		Dampener   (Replaces: 2158826)				$ 1.82

    View Diagram in Separate Window       Print Part List
