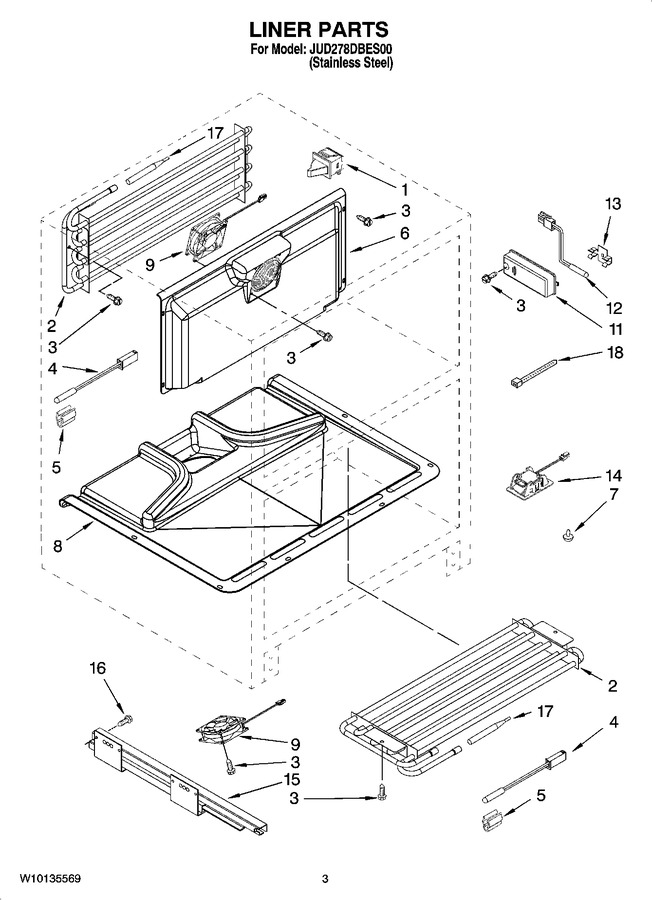

02 - Liner Parts


03 - Drawer Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2257999		Switch, Rocker (2)		Appelez-nous	-
2	2257814		Evaporator (2)				$ 211.71
3	WP489478		Screw   (Replaces: 489478)				$ 8.18
4	2258075		Thermistor (evaporator)		Appelez-nous	-
5	2257639		Clip, Thermistor (evaporator)		Appelez-nous	-
6	2258295		Cover, Evaporator (upper)		Appelez-nous	-
7	WP3400924		Retainer, Push-in (8)   (Replaces: 3400924)			Immediately	$ 45.39
8	2258314		Cover, Evaporator (lower)		Appelez-nous	-
9	2258310		Evaporator Fan (upper & Lower)		Appelez-nous	-
11	1116793		Cover, Thermistor (2)				$ 14.63
12	WP2188820		Thermistor (2)   (Replaces: 2188820)			Immediately	$ 30.85
13	2209204		Clip, Thermistor (2)		Appelez-nous	-
14	2258025		Light Assembly (2)		Appelez-nous	-
15	2257883		Slide, Drawer (right (2))		Appelez-nous	-
15	2257882		Slide, Drawer (left (2))		Appelez-nous	-
16	8534081		Screw				$ 7.81
17	2257914		Tube, Capillary To Evaporator		Appelez-nous	-
18	WPW10339879		Wire Tie   (Replaces: 857547)				$ 8.30
