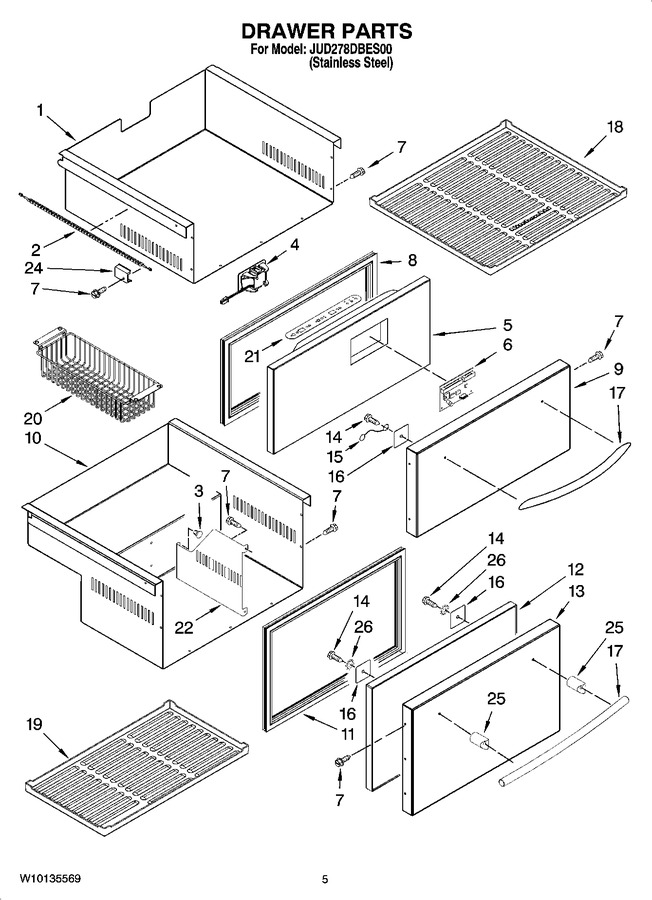

01 - Cabinet Parts


02 - Liner Parts


03 - Drawer Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2257847		Drawer, Upper		Appelez-nous	-
2	2310340		Harness, Wiring (drawer)				$ 60.47
3	2258135		Rivet, Plastic		Appelez-nous	-
4	2258025		Light Assembly		Appelez-nous	-
5	2257951		Drawer Front (upper)		Appelez-nous	-
6	2304086		Control, Electronic				$ 252.77
7	8534081		Screw				$ 7.81
8	2258015		Gasket, Upper Drawer		Appelez-nous	-
9	W10122744		Skin, Door (upper)		Appelez-nous	-
10	2257848		Drawer, Lower		Appelez-nous	-
11	2258016		Gasket, Lower Drawer		Appelez-nous	-
12	2257950		Drawer Front (lower)		Appelez-nous	-
13	W10122746		Skin, Door (lower)		Appelez-nous	-
14	3400221		Screw		Appelez-nous	-
15	2310033		Wire, Ground		Appelez-nous	-
16	6918634		Plate, Backing		Appelez-nous	-
17	6918666		Handle		Appelez-nous	-
18	W10122742		Mat, Upper Drawer		Appelez-nous	-
19	W10122740		Mat, Lower Drawer		Appelez-nous	-
20	2258000		Basket (2)		Appelez-nous	-
21	2258374		Overlay		Appelez-nous	-
22	2258131		Divider		Appelez-nous	-
24	2258173		Cover, Connector		Appelez-nous	-
25	6918667		Stud, Handle				$ 44.74
26	977451		Washer, Lock		Appelez-nous	-
