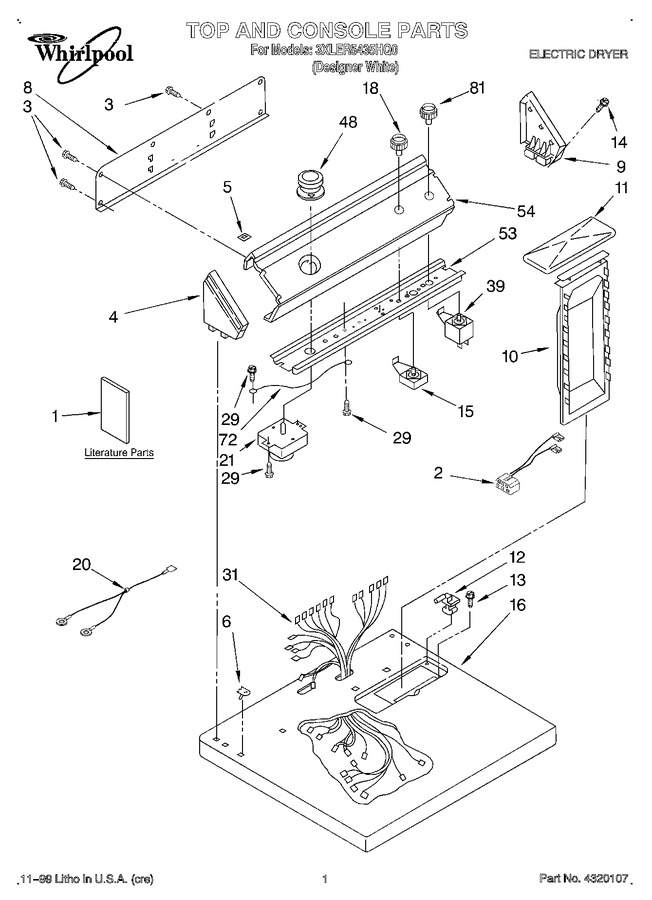

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3406302 | Literaure Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT3401012 | Literaure Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3394036 | Literaure Parts (operating Instructions) |
|
- | |||||
| 1 | LIT3397626 | Literaure Parts (installation Instructions (spanish)) |
|
- | |||||
| 1 | LIT3397627 | Literaure Parts (installation Instructions (english)) |
|
- | |||||
| 2 | 8283286 | Wire Jumper Assembly (Replaces: 3396028) |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | 3950975 | Cap, End (l.h.) |
|
- | |||||
| 5 | W10113937 | Clip, Ground (Replaces: 357572) |
|
$ 11.37 | |||||
| 6 | WP357213 | Stop, Push-in (Replaces: 357213) |
|
$ 7.76 | |||||
| 8 | 3397545 | Panel, Rear Console |
|
- | |||||
| 9 | 3950974 | Cap, End (r.h.) |
|
- | |||||
| 10 | WP349639 | Handle & Lint Screen Assembly (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 8.11 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 15 | 3399638 | Switch, Temperature |
|
$ 136.24 | |||||
| 16 | 3396022 | Top (white) |
|
- | |||||
| 18 | WP3957796 | Knob, Control (Replaces: 3950759) |
|
Immediately | $ 57.57 | ||||
| 20 | 3401688 | Harness, Ground |
|
- | |||||
| 21 | 3396215 | Timer 60 Hz. |
|
$ 180.59 | |||||
| 29 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 31 | 8283159 | Harness, Wiring |
|
- | |||||
| 39 | WP3395382 | Switch, Push-to-start (Replaces: 3395382) |
|
Immediately | $ 43.80 | ||||
| 48 | WP3957752 | Knob, Timer (Replaces: 3406143) |
|
$ 56.66 | |||||
| 53 | 8054298 | Bracket, Control |
|
- | |||||
| 54 | 3401065 | Panel, Control |
|
- | |||||
| 72 | 690853 | Wire, Ground |
|
- | |||||
| 81 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 81 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 81 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 81 | WP3957800 | Knob, Push-to-start (Replaces: 3406133) |
|
$ 52.92 | |||||
| 81 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 81 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 81 | 350941 | Leveler (thinner) |
|
- | |||||
| 81 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 81 | 978883 | Almond (uncut) |
|
- | |||||
| LIT677818 | Dryer |
|
- |
