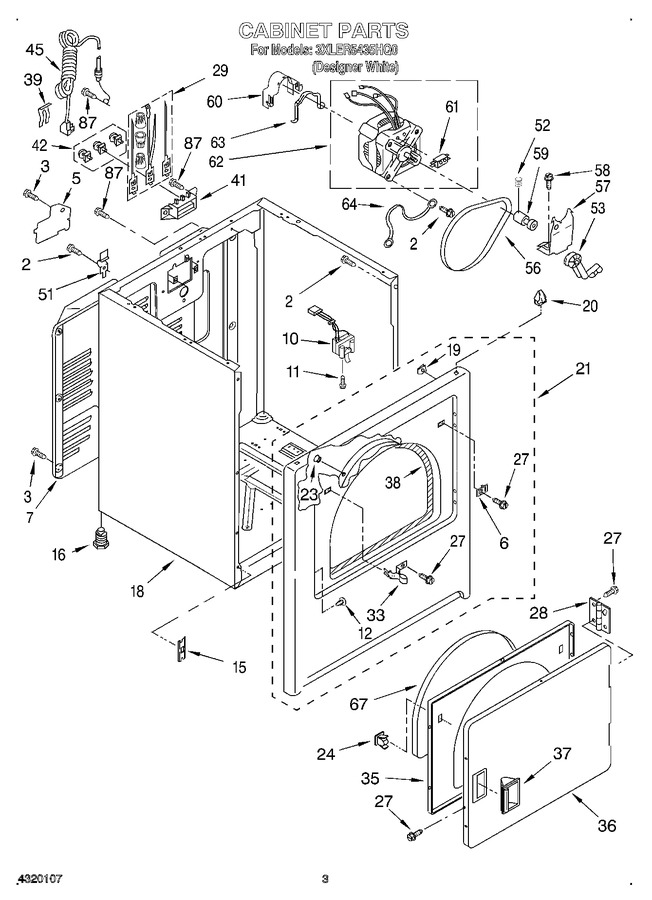

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 3 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 5 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 6 | WP3403630 | Plug, Strike Hole (Replaces: 3403630) |
|
$ 7.91 | |||||
| 7 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 358.37 | |||||
| 10 | WP3406105 | Switch, Door (Replaces: 3406104) |
|
Immediately | $ 36.90 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 12 | WP3404413 | Plug, Hinge Hole (4) (Replaces: 3404413) |
|
Immediately | $ 8.35 | ||||
| 15 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 16 | 49621 | Foot (4) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 18 | 3399585 | Cabinet |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 13.31 | ||||
| 21 | W10806345 | Front Panel Assembly (Replaces: 3403444) |
|
$ 244.38 | |||||
| 23 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 23.55 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 27 | WP488627 | Screw (8) (Replaces: 342055) |
|
$ 8.11 | |||||
| 28 | WPW10362431 | Hinge & Pin Assembly (Replaces: 3405514) |
|
Immediately | $ 8.28 | ||||
| 29 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 42) |
|
Immediately | $ 106.04 | ||||
| 33 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 35 | WP3402341 | Door, Rear (Replaces: 3402341) |
|
$ 208.71 | |||||
| 36 | W10861227 | Door, Front (Replaces: 3402335) |
|
$ 269.26 | |||||
| 37 | WP3405184 | Handle, Door (Replaces: 3405184) |
|
$ 79.81 | |||||
| 38 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 78.78 | ||||
| 39 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 41 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 42 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 55.66 | ||||
| 45 | 3387258 | Cord, Power |
|
- | |||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 8.21 | |||||
| 52 | 690046 | Screw, Set |
|
- | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 18.15 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 14.04 | ||||
| 59 | W11618508 | Pulley, 50 Hz. (includes Item No. 52) (Replaces: 685064) |
|
$ 365.52 | |||||
| 60 | WP3404162 | Clamp, Motor (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 61 | 279827 | Switch, Motor (Replaces: 3388235) |
|
Immediately | $ 191.95 | ||||
| 62 | W11618508 | Motor Assembly, 50/60 Hz. (Replaces: 685815) |
|
$ 365.52 | |||||
| 63 | WP660658 | (alt.) (Replaces: 685441) |
|
$ 8.22 | |||||
| 63 | WP660658 | (alt.) (Replaces: 343481) |
|
$ 8.22 | |||||
| 63 | WP660658 | Clip, Motor (2) (Replaces: 660658) |
|
$ 8.22 | |||||
| 64 | 690236 | Wire, Ground |
|
- | |||||
| 67 | W10861521 | Seal, Door (Replaces: 3405246) |
|
Immediately | $ 58.69 | ||||
| 87 | W10850756 | Screw, 10-32 X 1/2 (grounding) (Replaces: 697776) |
|
$ 8.20 |
