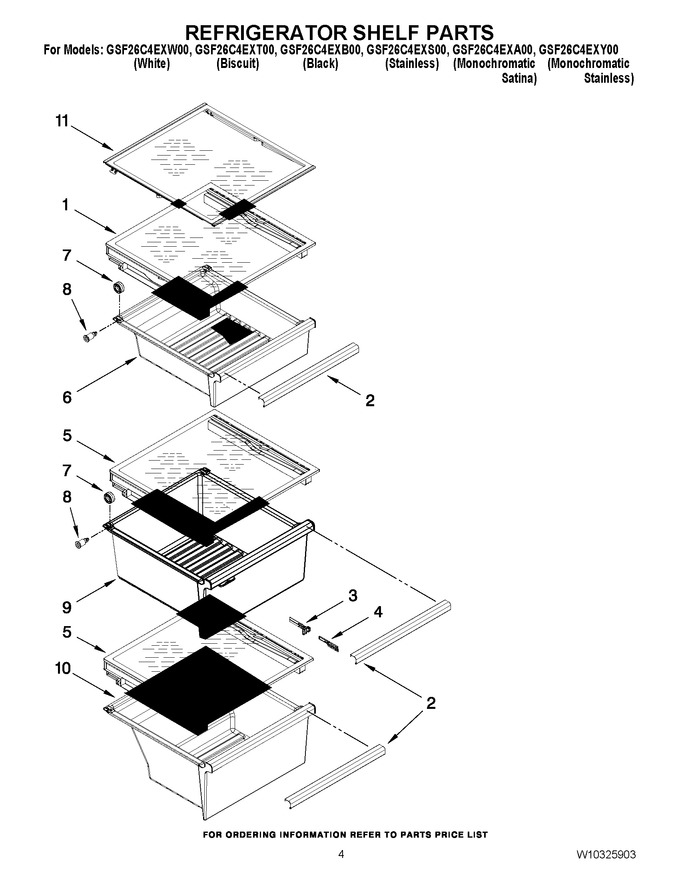

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10290493		Shelf, Snack Pan				$ 117.66
2	WPW10256775		Trim, Handle   (Replaces: W10256775)				$ 101.17
3	W11746089		Slide, Humidity   (Replaces: W10282883)				$ 30.50
4	W11746089		Housing, Humidity   (Replaces: W10282880)				$ 30.50
5	WPW10282541		Cover, Assy   (Replaces: W10282541)				$ 288.16
6	WPW10256770		Snack Pan (also Order 2, 7, & 8)   (Replaces: W10256770)				$ 164.87
7	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
8	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
9	WPW10278653		Crisper Pan (also Order 2, 3, 4, 7, & 8)   (Replaces: W10278653)				$ 173.33
10	WPW10256774		Meat Pan (also Order 7, 8, & 10)   (Replaces: W10256774)			Immediately	$ 170.34
11	W10256767		Shelf Assy				$ 119.79

    View Diagram in Separate Window       Print Part List
