01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)

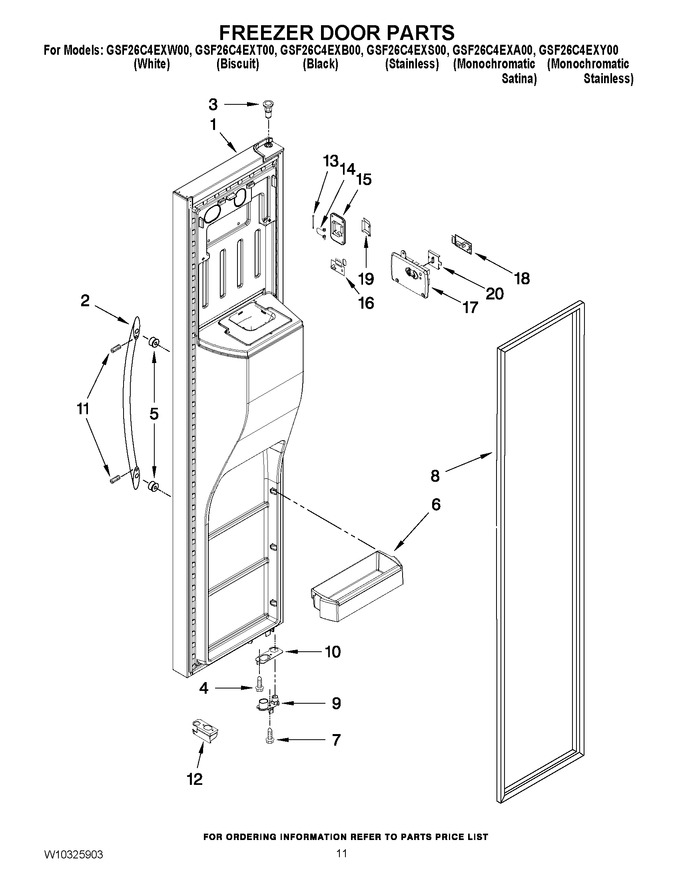

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10261130		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10290920		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10290919		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10290922		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10290921		Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
1	W10290923		Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
2	WPW10268057		Handle (black)   (Replaces: W10268057)				$ 165.82
2	WPW10268056		Handle (white)   (Replaces: W10268056)				$ 165.82
2	WPW10670421		Handle (stainless/satina)   (Replaces: W10274730)				$ 242.05
2	W10268055		Handle (biscuit)		Appelez-nous	-
3	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.76
4	WPW10296804		Screw   (Replaces: W10296804)				$ 10.85
5	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
6	WPW10296857		Door Bin   (Replaces: W10296857)				$ 77.44
7	WPW10296816		Screw   (Replaces: W10296816)				$ 7.52
8	WPW10249913		Door Gasket, Magnetic (black)   (Replaces: W10249913)				$ 305.76
8	WPW10355585		Door Gasket, Magnetic (apollo Grey)   (Replaces: W10249917)				$ 321.21
8	WPW10247885		Door Gasket, Magnetic (mist Beige)   (Replaces: W10247885)				$ 330.54
9	WPW10257206		Door Closer, Upper Cam (apollo Grey)   (Replaces: W10257206)			Immediately	$ 12.55
9	WPW10248015		Door Closer, Upper Cam (white)   (Replaces: W10248015)				$ 12.25
9	W10257205		Door Closer, Upper Cam (biscuit)		Appelez-nous	-
9	W11607100		Door Closer, Upper Cam (black)   (Replaces: W10257204)			Immediately	$ 13.31
10	W11293380		Bracket, Door Stop (chrome)   (Replaces: W10247907)				$ 65.91
11	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
11	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 7.88
12	WPW10632062		Cover, Door Stop (midnight Grey)   (Replaces: W10257223)				$ 7.19
12	W10632059		Cover, Door Stop (white)   (Replaces: W10257220)				$ 22.34
12	W10257222		Cover, Door Stop (biscuit)		Appelez-nous	-
12	W10632060		Cover, Door Stop (black)   (Replaces: W10257221)				$ 21.24
13	WP2198634		Pin   (Replaces: 2198634)				$ 17.76
14	WP2198635		Spring   (Replaces: 2198635)				$ 87.08
15	W10258502		Cover, Emitter				$ 85.47
16	W10870822		P.c. Board, Emitter   (Replaces: W10180607)			Immediately	$ 222.54
17	W11763407		Cover, Receiver   (Replaces: W10258510)				$ 42.38
18	W11813704		P.c. Board, Receiver   (Replaces: W10296530)			Immediately	$ 313.30
19	WPW10258520		Flipper   (Replaces: W10258520)				$ 75.86
20	W10258540		Slide, Ice Make				$ 10.62
