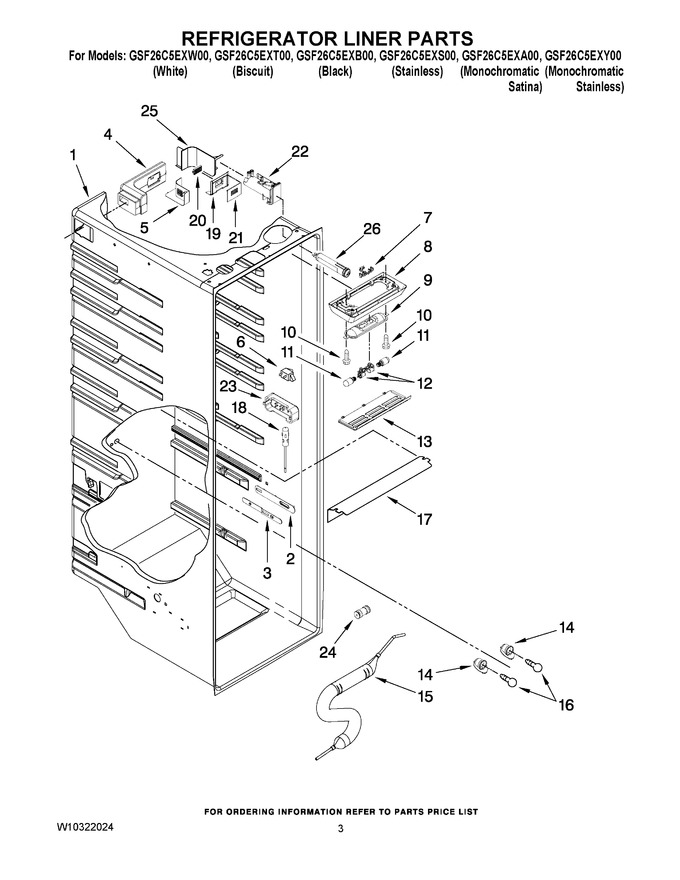

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10260988 | Escutcheon, Meat Pan Control |
|
- | |||||
| 3 | W10260989 | Slide, Meat Pan Control |
|
- | |||||
| 4 | W10814173 | Air Diffuser Assembly (Replaces: W10251495) |
|
Immediately | $ 343.37 | ||||
| 5 | W10310321 | Air Diffuser Cover |
|
- | |||||
| 6 | W11123943 | Switch Rocker Arm (Replaces: 2149954) |
|
$ 34.91 | |||||
| 7 | W10253300 | Wire Assy, Top Light |
|
- | |||||
| 8 | W10280178 | Trim, Light |
|
- | |||||
| 9 | 2223680 | Shield, Heat |
|
$ 89.07 | |||||
| 10 | WP3400906 | Screw (Replaces: W10141632) |
|
$ 7.84 | |||||
| 11 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 12.11 | ||||
| 12 | WPW10191429 | Socket, Light (Replaces: 2223857) |
|
$ 8.38 | |||||
| 13 | W10280420 | Lens, Top Light |
|
$ 102.04 | |||||
| 14 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 15 | W11802492 | Reservoir (Replaces: W10238085) |
|
$ 84.68 | |||||
| 16 | W11679940 | Light Bulb (Replaces: W10311505) |
|
Immediately | $ 11.30 | ||||
| 17 | WPW10269099 | Lens, Light (Replaces: W10295024) |
|
$ 121.91 | |||||
| 18 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 32.00 | ||||
| 19 | W10260413 | Air Filter Housing |
|
- | |||||
| 20 | W10311524 | Air Filter (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 21 | W10251520 | Air Filter Cover |
|
- | |||||
| 22 | WPW10238123 | Housing, Water Filter (Replaces: W10238123) |
|
$ 228.39 | |||||
| 23 | WPW10425252 | Cover, Thermistor (Replaces: W10251510) |
|
Immediately | $ 84.17 | ||||
| 24 | WPW10271543 | Connector, 1/4 X 5/16 (Replaces: W10271543) |
|
Immediately | $ 33.74 | ||||
| 25 | WPW10260405 | Cover, Water Filter (Replaces: W10260403) |
|
$ 113.11 | |||||
| 26 | EDR1RXD1B | Water Filter (Replaces: W10295370) |
|
Immediately | $ 49.99 |
