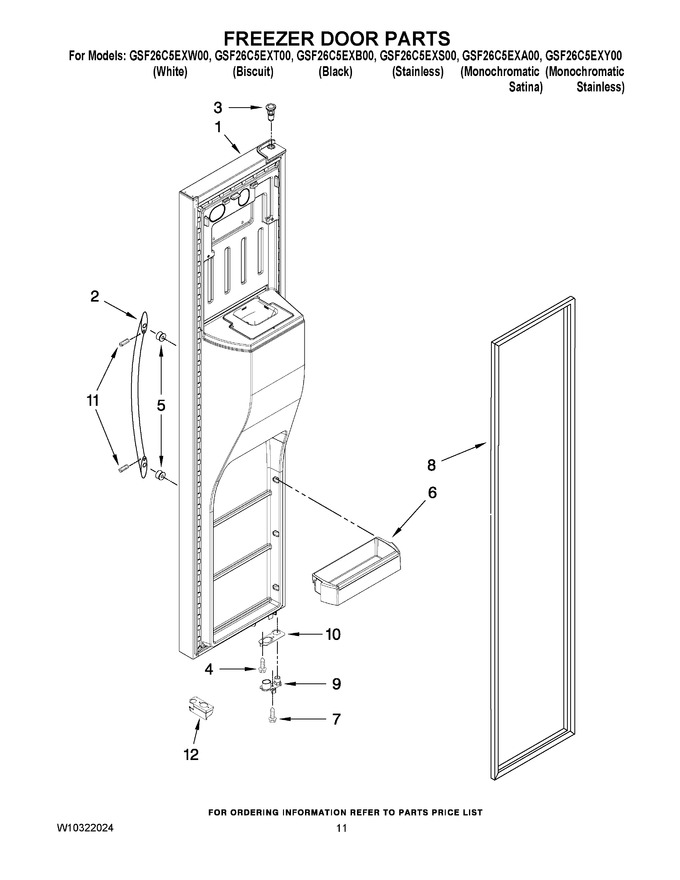

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10261130		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10290920		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10334261		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10290922		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10290921		Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
1	W10290923		Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
2	WPW10268056		Handle (white)   (Replaces: W10268056)				$ 174.11
2	WPW10268057		Handle (black)   (Replaces: W10268057)				$ 174.11
2	W10268055		Handle (biscuit)		Appelez-nous	-
2	WPW10670421		Handle (stainless/satina)   (Replaces: W10274730)				$ 254.15
3	WP2182181		Thimble-top   (Replaces: 2200087)				$ 8.15
4	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
5	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
6	WPW10296857		Door Bin   (Replaces: W10296857)				$ 81.31
7	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
8	WPW10355585		Door Gasket, Magnetic (apollo Grey)   (Replaces: W10249917)				$ 337.27
8	WPW10249913		Door Gasket, Magnetic (black)   (Replaces: W10249913)				$ 321.05
8	WPW10247885		Door Gasket, Magnetic (mist Beige)   (Replaces: W10247885)				$ 347.07
9	WPW10257206		Door Closer, Upper Cam (apollo Grey)   (Replaces: W10257206)			Immediately	$ 13.18
9	W11607100		Door Closer, Upper Cam (black)   (Replaces: W10257204)			Immediately	$ 13.98
9	W10257205		Door Closer, Upper Cam (biscuit)		Appelez-nous	-
9	WPW10248015		Door Closer, Upper Cam (white)   (Replaces: W10248015)				$ 12.85
10	W11293380		Bracket, Door Stop (chrome)   (Replaces: W10247907)				$ 69.21
11	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 8.57
11	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
12	WPW10632062		Cover, Door Stop (midnight Grey)   (Replaces: W10257223)				$ 7.55
12	W11661847		Cover, Door Stop (white)   (Replaces: W10257218)			Immediately	$ 31.71
12	W10257222		Cover, Door Stop (biscuit)		Appelez-nous	-
12	W10632060		Cover, Door Stop (black)   (Replaces: W10257221)				$ 22.30

    View Diagram in Separate Window       Print Part List
