SELECT A DIAGRAM
New Model Search:

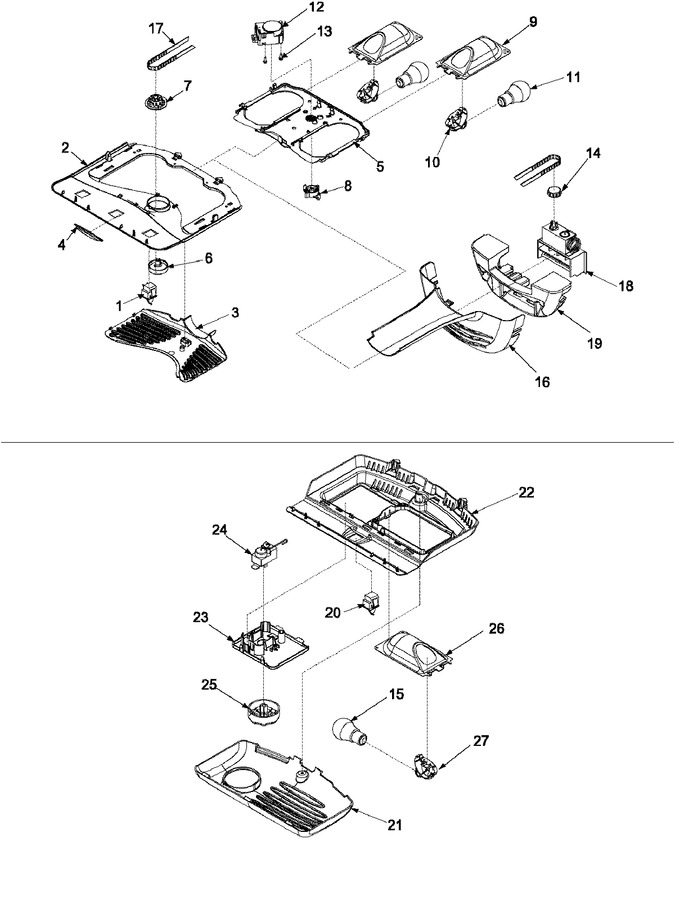

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11384469 | Switch, Light (Replaces: C3680310) |
|
Immediately | $ 37.23 | ||||
| 2 | 67002083 | Module, Light |
|
- | |||||
| 3 | 67002301 | Cover, Ref Light |
|
- | |||||
| 4 | 67002945 | Logo, Light Module |
|
- | |||||
| 5 | 67002085 | Pan, Timer/light Housing |
|
$ 46.49 | |||||
| 6 | 67002512 | Knob, Front Damper |
|
$ 35.96 | |||||
| 7 | 67001033 | Knob, Gear |
|
$ 18.96 | |||||
| 8 | 67001034 | Tensioner, Belt |
|
$ 9.72 | |||||
| 9 | W11702858 | Housing, Light (Replaces: 67001035) |
|
$ 85.82 | |||||
| 10 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 13.21 | ||||
| 11 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 12 | WP67001036 | Timer, Defrost (Replaces: 67001036) |
|
Immediately | $ 150.57 | ||||
| 13 | M0216705 | Screw |
|
$ 5.81 | |||||
| 14 | 67001037 | Gear, Damper |
|
$ 46.16 | |||||
| 15 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 16 | 67003034 | Cover, Damper |
|
- | |||||
| 17 | 67002482 | Belt, Damper |
|
$ 17.36 | |||||
| 18 | 67001041 | Control, Damper |
|
- | |||||
| 19 | 67001042 | Insulation, Damper |
|
- | |||||
| 20 | W11396033 | Switch, Light/intrlk (Replaces: 12466101) |
|
Immediately | $ 37.30 | ||||
| 21 | 67001285 | Cover, Fz Light |
|
$ 26.46 | |||||
| 22 | 67001286 | Module, Fz Control |
|
- | |||||
| 23 | 67001045 | Panel, Fz Control Mounting |
|
$ 6.47 | |||||
| 24 | WP67003000 | Control, Fz Temperature (Replaces: 67001046) |
|
Immediately | $ 184.98 | ||||
| 25 | 67001321 | Knob, Fz Control |
|
- | |||||
| 26 | W11702858 | Housing, Light (Replaces: 67001035) |
|
$ 85.82 | |||||
| 27 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 13.21 | ||||
| 30 | 67002453 | Harness, Ff Module |
|
- | |||||
| 31 | 67002554 | Harness, Fz Module |
|
- |
