SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Ice Maker Kit Amkit02 P1328005w 12002047


07 - Interior Cabinet & Freezer Shelving


08 - Refrigerator Door


09 - Refrigerator Shelving


10 - Supplemental Information


11 - Water Dispenser/filter


12 - Wiring Information

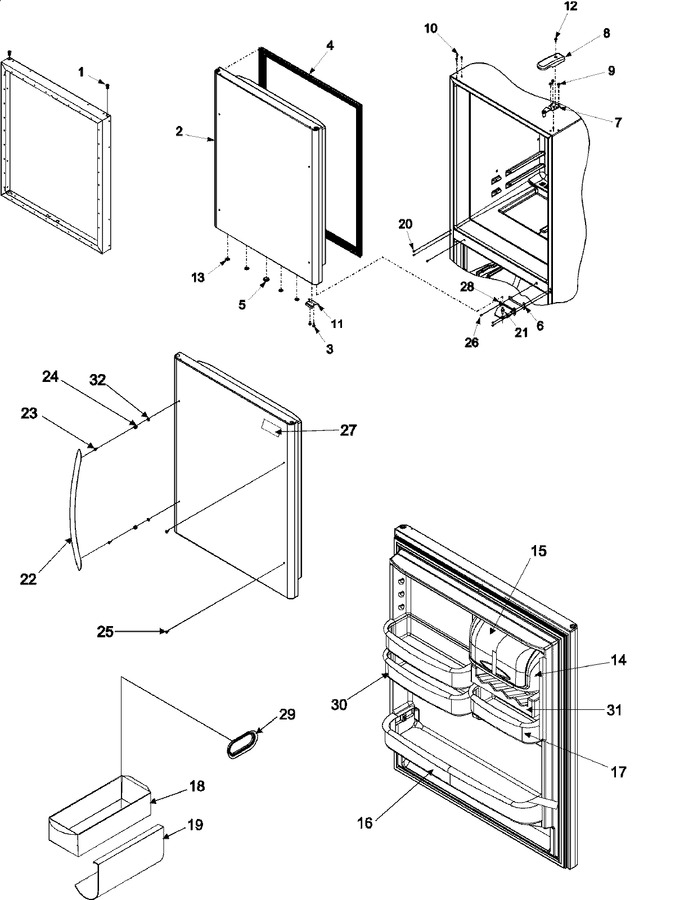

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10961002		Bushing, Door (blk)		Appelez-nous	-
2	67003024		Ref Dr Foam Assy (blk)		Appelez-nous	-
3	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
4	W10849442		Gasket, Ref Door (blk)   (Replaces: 12683805B)				$ 361.55
5	A3080001		Plug, Button (blk)		Appelez-nous	-
6	WPM0274062		Shim, Non Metal (blk)   (Replaces: M0274062)			Immediately	$ 24.43
7	WP12566606ED		Hinge, Top (blk)   (Replaces: 67001011)			Immediately	$ 47.13
8	67001012		Cover, Top Hinge (blk)				$ 49.71
9	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
10	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)			Immediately	$ 8.15
11	W11708403		Stop, Door (blk)   (Replaces: 10447109)			Immediately	$ 14.75
12	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.55
13	67004838		Plug, Button (blk)   (Replaces: 67001016)				$ 11.21
14	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
15	WP67003637		Door, Dairy   (Replaces: 67002842)			Immediately	$ 82.67
16	67003027		Retainer, Ref Dr		Appelez-nous	-
17	67002930		Bucket, Med Ref Dr		Appelez-nous	-
18	W10136387A		Assy,egg Bin   (Replaces: 12574902)				$ 19.54
19	67002683		Rack, Wine		Appelez-nous	-
20	WP489349		Screw, Tf   (Replaces: M0239730)			Immediately	$ 8.43
21	12002311		Pin, Hinge (ctr)   (Replaces: 10351003)				$ 8.24
22	67002973		Handle Assy (blk) Arched		Appelez-nous	-
23	WP3387230		Screw, Mount   (Replaces: 67002935)			Immediately	$ 8.54
25	WP12246608		Button, Plug (blk)   (Replaces: 67001131)			Immediately	$ 8.15
26	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.72
27	12248503		Nameplate(black)x Kitchen Aid		Appelez-nous	-
28	WP12607104ED		Hinge, Center (blk)   (Replaces: 67001167)				$ 167.35
29	12304601		Dish, Butter		Appelez-nous	-
30	67003028		Bucket, Lg Ref Dr		Appelez-nous	-
31	WP67005626		Caddy, Can   (Replaces: 67002937)				$ 81.49
32	67002938		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
