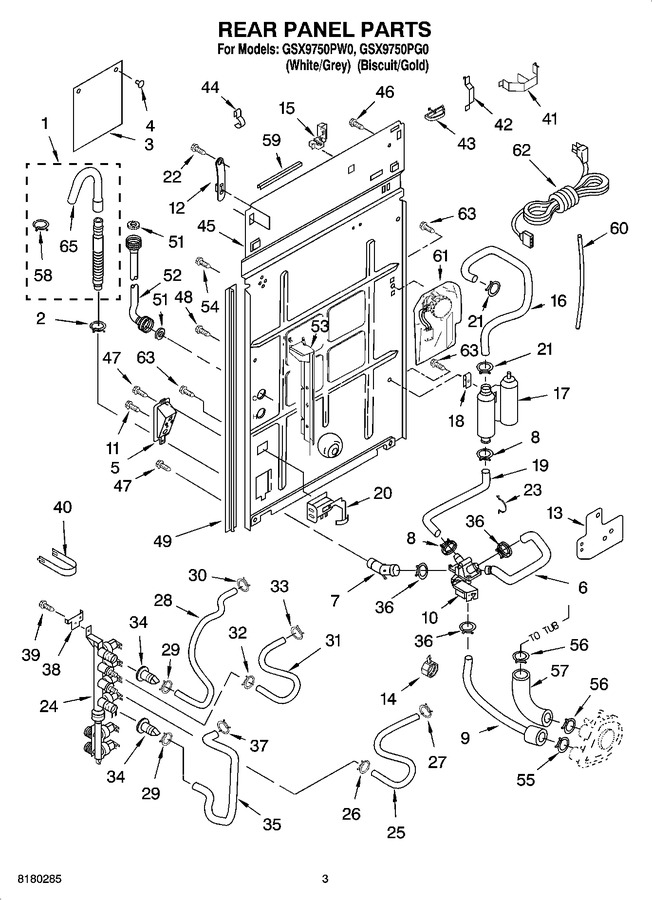

02 - Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Control Panel Parts


07 - Wiring Harness Parts


08 - Brake And Drive Tube Parts


09 - Gearcase Parts


10 - Water System Parts


11 - Miscellaneous Parts Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
1	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 60.90
1	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
2	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 8.52
3	8282565		Drape, Rear Panel		Appelez-nous	-
4	8282566		Clip, Drape				$ 12.83
5	3976335		Bracket, Valve Mtg		Appelez-nous	-
6	8317908		Hose, 2-way Valve To Drain		Appelez-nous	-
7	3976337		Connector, Hose		Appelez-nous	-
8	WP285655		Hose, Clamp   (Replaces: 370445)			Immediately	$ 8.39
9	8317907		Hose, Pump To 2-way Valve		Appelez-nous	-
10	3358559		Valve, 2-way				$ 122.77
11	3352299		Screw		Appelez-nous	-
12	WP8568314		Strap, Console (2)   (Replaces: 8318255)				$ 7.78
13	3948552		Shield, 2-way				$ 7.81
14	3976395		Clamp, Hose				$ 11.96
15	3952821		Relief, Strain (power Cord)		Appelez-nous	-
16	8055233		Hose, Airdome				$ 14.72
17	8317889		Airdome Assembly				$ 15.40
18	98084		Clip, Airdome		Appelez-nous	-
19	8054709		Hose, 2-way Valve To Airdome		Appelez-nous	-
20	8283252		Switch, Kickout				$ 82.41
21	3363365		Clamp, Hose				$ 10.75
22	WP90767		Screw, Strap To Console   (Replaces: 90767)			Immediately	$ 7.82
23	8054659		Clip, Hose (2) (recirculating)		Appelez-nous	-
24	8542063		Valve, Inlet		Appelez-nous	-
25	8271982		Hose, Detergent				$ 8.45
26	WP596669		Clamp, Hose   (Replaces: 8318490)			Immediately	$ 8.40
27	WP596669		Clamp, Hose   (Replaces: 8318492)			Immediately	$ 8.40
28	8271984		Hose, Bleach				$ 8.09
29	WP596669		Clamp, Hose   (Replaces: 8318493)			Immediately	$ 8.40
30	WP596669		Clamp, Hose   (Replaces: 8318494)			Immediately	$ 8.40
31	8271983		Hose, Fabric Softener				$ 8.25
32	WP596669		Clamp, Hose   (Replaces: 8318491)			Immediately	$ 8.40
33	WP596669		Clamp, Hose   (Replaces: 8318495)			Immediately	$ 8.40
34	8055306		Check Valve, Duck Bill				$ 13.67
35	8318496		Hose, Fresh Fill		Appelez-nous	-
36	WP285655		Clamp, Drain Hose   (Replaces: 370449)			Immediately	$ 8.39
37	WP285655		Clamp, Hose   (Replaces: 8318497)			Immediately	$ 8.39
38	8271909		Bracket, Valve		Appelez-nous	-
39	WP9740848		Screw   (Replaces: 8318499)			Immediately	$ 7.86
40	8272128		Restraint, Hose		Appelez-nous	-
41	8055003		Clip, Harness & Pressure Hose				$ 36.24
42	8054658		Clip, Harness		Appelez-nous	-
43	3352944		Clip, Push-in		Appelez-nous	-
44	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
45	8282493		Panel, Rear		Appelez-nous	-
46	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
47	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
48	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
49	WP62747		Pad, Rear Panel (2)   (Replaces: 62747)				$ 26.26
51	WP16123		Washer, Inlet Hose   (Replaces: 3976300)				$ 7.70
52	WP89503		Hose, Water Inlet ((blue Coupler))   (Replaces: 3949374)			Immediately	$ 24.09
52	WP89503		Hose, Water Inlet ((red Coupler))   (Replaces: 3949375)			Immediately	$ 24.09
53	8543414		Shield, Upper Valve		Appelez-nous	-
54	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
55	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
56	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 7.81
57	8055063		Hose, Tub To Pump		Appelez-nous	-
58	WP3357331		Clamp, Hose   (Replaces: 3366913)				$ 7.56
59	303294		Edge Protector		Appelez-nous	-
60	WP353244		Hose, Airdome To Pressure Switch   (Replaces: 3347781)			Immediately	$ 59.93
61	8545900		Switch, Pressure Assembly (includes Mounting Bracket, Jumper Harness, And Shield)		Appelez-nous	-
62	661661		Cord, Power (includes Item 15)				$ 25.46
63	WP273556		Screw, 10-16 X 5/8   (Replaces: 3387485)			Immediately	$ 7.82
65	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 93.20
