SELECT A DIAGRAM
New Model Search:

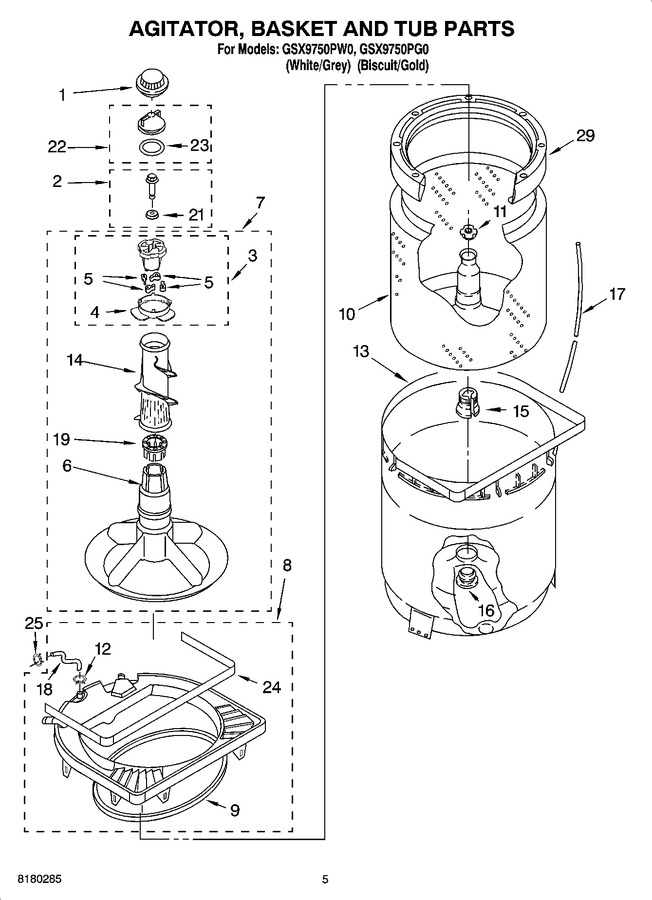

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 9.00 | ||||
| 2 | WP358237 | Screw & Washer (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 3 | 285809 | Cam Driven (Replaces: 3951682) |
|
Immediately | $ 31.12 | ||||
| 4 | WP3952374 | Bearing, Driven Cam (Replaces: 3952374) |
|
$ 8.24 | |||||
| 5 | 80040 | Dog-agitator (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 6 | WP3951632 | Agitator (Replaces: 3951632) |
|
Immediately | $ 127.99 | ||||
| 7 | 285565 | Agitator Assembly (complete) (Replaces: 3951744) |
|
Immediately | $ 259.89 | ||||
| 8 | 8054686 | Tub Ring Assembly |
|
- | |||||
| 9 | 8054355 | Seal, Tub Ring |
|
$ 6.92 | |||||
| 10 | 3951984 | Basket |
|
- | |||||
| 11 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 12 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.82 | ||||
| 13 | 8055061 | Tub |
|
$ 60.27 | |||||
| 14 | WP3363003 | Clothes Mover (Replaces: 3363003) |
|
Immediately | $ 257.52 | ||||
| 15 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 16 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.98 | ||||
| 17 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 18 | 8526793 | Hose, Bleach Outlet |
|
$ 20.50 | |||||
| 19 | WP3951608 | Spacer, Thrust (Replaces: 3951608) |
|
Immediately | $ 7.64 | ||||
| 21 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 22 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 13.02 | ||||
| 23 | WPW10072840 | Seal-inner Cap (Replaces: 3348855) |
|
Immediately | $ 8.72 | ||||
| 24 | 8055082 | Shield, Splash |
|
$ 38.49 | |||||
| 25 | WP596669 | Clamp, Hose (Replaces: 3955674) |
|
Immediately | $ 8.82 | ||||
| 29 | 8271897 | Balance Ring |
|
- |
