SELECT A DIAGRAM

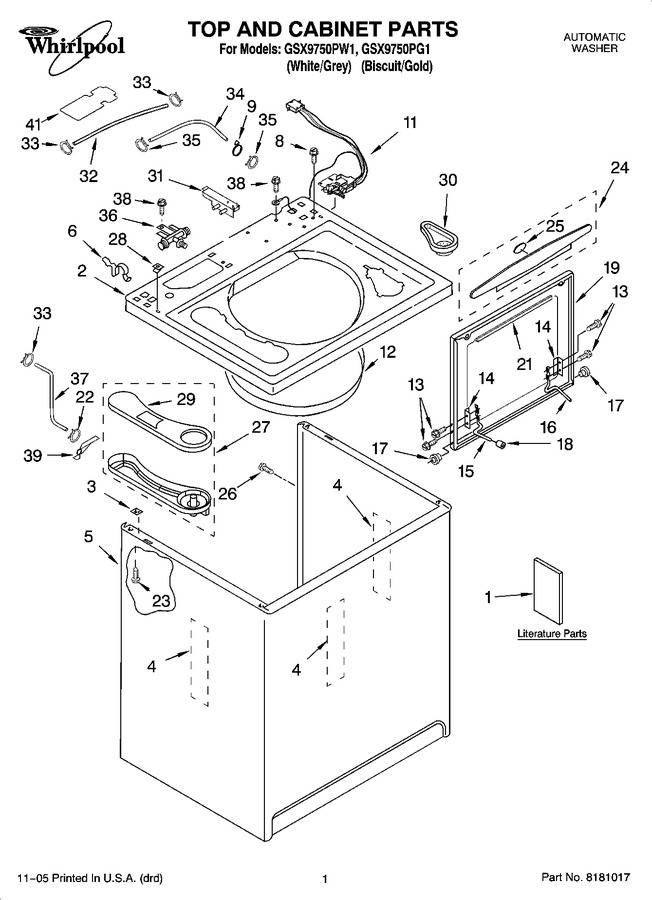

01 - Top And Cabinet Parts


02 - Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Control Panel Parts


07 - Wiring Harness Parts


08 - Brake And Drive Tube Parts


09 - Gearcase Parts


10 - Water System Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3956025		Installation Instructions		Appelez-nous	-
1	4313896		Manual, Washer Do-it-yourself				$ 33.26
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	3957473		Energy Guide		Appelez-nous	-
1	8558794		Wiring Diagram		Appelez-nous	-
1	8578240		Use & Care Guide		Appelez-nous	-
2	8274367		Top (biscuit)		Appelez-nous	-
2	8274365		Top (white)		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top   (Replaces: 62750)			Immediately	$ 7.69
4	3976348		Cabinet - Sound Damper (3)				$ 37.92
5	63424		Cabinet (white)				$ 370.02
5	3954357		Cabinet (biscuit)				$ 268.04
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
8	3400611		Screw, Lid Switch (2)		Appelez-nous	-
9	8559320		Restraint, Hose   (Replaces: 3352501)				$ 45.85
11	WP8054980		Switch, Lid   (Replaces: 8054980)			Immediately	$ 154.77
12	8271956		Splash Shield Assembly				$ 61.36
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 355274)			Immediately	$ 7.19
14	WP21097		Pad, Hinge   (Replaces: 21097)				$ 7.80
15	8055257		Hinge, Lid (left)				$ 6.31
16	8055256		Hinge, Lid (right)				$ 23.30
17	8319539		Bearing, Lid Hinge (2)				$ 5.51
18	19119		Bumper, Lid Hinge				$ 5.75
19	3957096		Lid (biscuit)		Appelez-nous	-
19	3957095		Lid (white)		Appelez-nous	-
21	8054939		Seal, Lid				$ 50.57
22	WP596669		Clamp, Hose   (Replaces: 371505)			Immediately	$ 8.40
23	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.82
24	3956011		Handle, Lid (biscuit)		Appelez-nous	-
24	3956012		Handle, Lid (silver)		Appelez-nous	-
25	3956010		Insert, Handle		Appelez-nous	-
26	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
27	WP8055237		Dispenser, Bleach & Fabric Softener   (Replaces: 8055237)				$ 82.11
28	WP357213		Nut,push-in   (Replaces: 357213)				$ 7.39
29	8571813		Cover, Dispenser		Appelez-nous	-
30	8573834		Dispenser, Detergent		Appelez-nous	-
31	8055243		Connector, 2-port		Appelez-nous	-
32	8055266		Hose, Fabric Softener				$ 21.29
33	WP596669		Clamp, Hose   (Replaces: 371506)			Immediately	$ 8.40
34	8055267		Hose, Detergent		Appelez-nous	-
35	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.40
36	8272010		Connector, Venturi		Appelez-nous	-
37	WP8283537		Hose, Bleach   (Replaces: 8283537)				$ 30.63
38	WP3351614		Screw, 10-24 X 3/8   (Replaces: 3351614)			Immediately	$ 6.95
39	8271943		Restraint		Appelez-nous	-
41	8541605		Cover, Access		Appelez-nous	-
