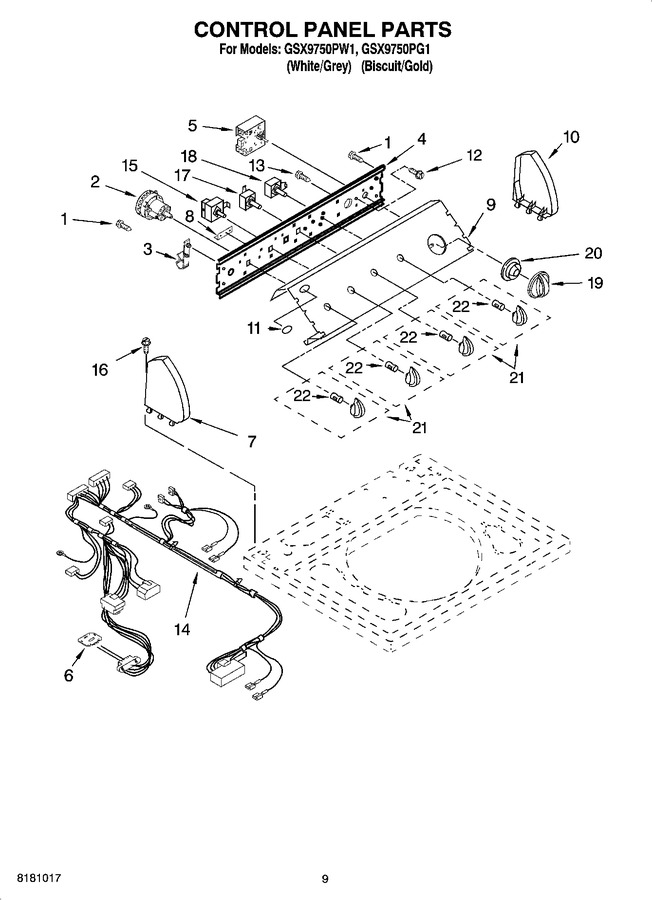

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 2 | W10339326 | Switch, Pressure (Replaces: 3366845) |
|
Immediately | $ 87.97 | ||||
| 3 | 8317975 | Retainer, Harness |
|
$ 5.86 | |||||
| 4 | 8544893 | Bracket, Control |
|
$ 62.87 | |||||
| 5 | 8545379 | Timer, Control (60 Hz.) (motor Not A Service Part) |
|
- | |||||
| 6 | 8541388 | Control, Atc |
|
- | |||||
| 7 | 8271368 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 7 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 8 | 8316039 | Shield, Atc |
|
- | |||||
| 9 | 3956616 | Panel, Console (includes Item 11) (silver) |
|
- | |||||
| 9 | 3956617 | Panel, Console (includes Item 11) (gold) |
|
- | |||||
| 10 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 10 | 8271362 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 11 | 8533990 | Medallion |
|
- | |||||
| 12 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 7.96 | |||||
| 13 | 3400073 | Screw, Ground |
|
- | |||||
| 14 | 3957017 | Harness, Wiring (for Detail, See Pages 11 & 12) |
|
- | |||||
| 15 | 3956646 | Switch, Water Temperature |
|
- | |||||
| 16 | WP388326 | Screw (Replaces: 388326) |
|
$ 8.11 | |||||
| 17 | W10851055 | Switch, Rotary (Replaces: 3949188) |
|
$ 164.06 | |||||
| 18 | WP3954573 | Switch, Rotary (Replaces: 3954573) |
|
$ 211.47 | |||||
| 19 | 8544946 | Knob, Timer (biscuit) |
|
$ 36.25 | |||||
| 19 | 8544945 | Knob, Timer (silver) |
|
$ 38.06 | |||||
| 20 | WP8544947 | Dial, Timer (white) (Replaces: 8544947) |
|
$ 86.13 | |||||
| 20 | 8544948 | Dial, Timer (biscuit) |
|
- | |||||
| 21 | 8544937 | Knob, Control (silver) |
|
$ 24.98 | |||||
| 21 | 8544938 | Knob, Control (biscuit) |
|
$ 22.73 | |||||
| 22 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.81 |
