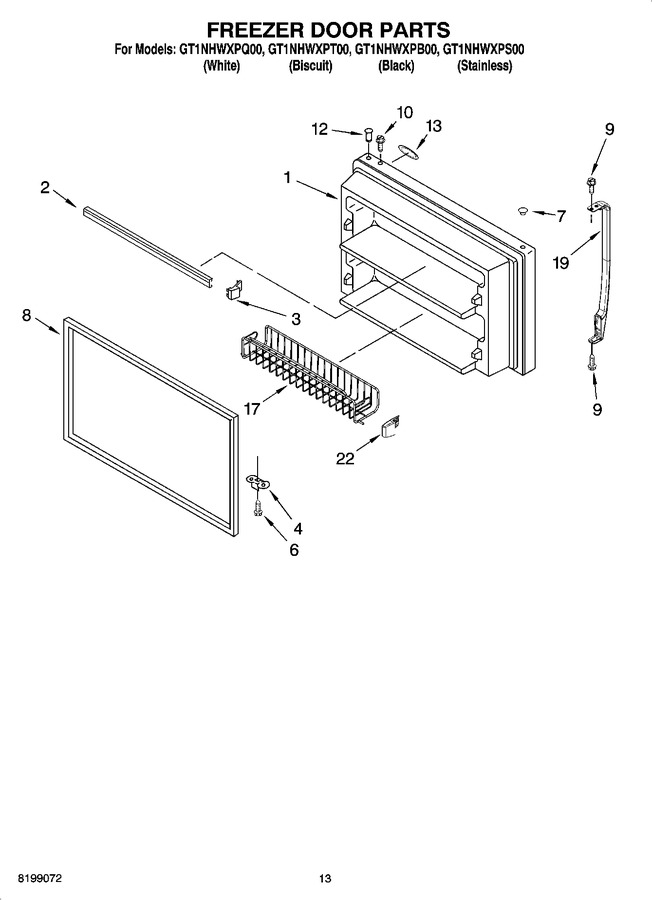

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200928		Freezer Door (includes 8& 12) (biscuit)		Appelez-nous	-
1	2183862		Freezer Door (includes 8& 12) (white)		Appelez-nous	-
1	2200621		Freezer Door (includes 8& 12) (black)		Appelez-nous	-
1	2218678		Freezer Door (includes 8& 12) (stainless)		Appelez-nous	-
2	2195947		Trim, Door				$ 50.94
3	WP2195916K		Endcap   (Replaces: 2195916)			Immediately	$ 12.55
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
6	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
7	WP2212651		Hole Plug, Hinge-sleeve (black)   (Replaces: 2212651)				$ 23.06
7	WP2212648		Hole Plug, Hinge-sleeve (white)   (Replaces: 2212648)			Immediately	$ 7.80
7	WP2212649		Hole Plug, Hinge-sleeve (biscuit)   (Replaces: 2212649)				$ 7.61
8	2177310		Door Gasket,magnetic (black)   (Replaces: 2214969)				$ 319.34
8	2159060		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214967)				$ 320.01
9	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
10	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
12	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
13	2220214		Nameplate				$ 32.43
17	2300796		Basket, Door				$ 84.50
19	4388950		Handle (black)   (Replaces: 2213111B)				$ 224.58
19	4388947		Handle (white)   (Replaces: 2213111W)				$ 194.73
19	2213111T		Handle (biscuit)		Appelez-nous	-
22	2300799		Endcap, Basket (right)				$ 47.65
22	2300798		Endcap, Basket (left)				$ 16.82
