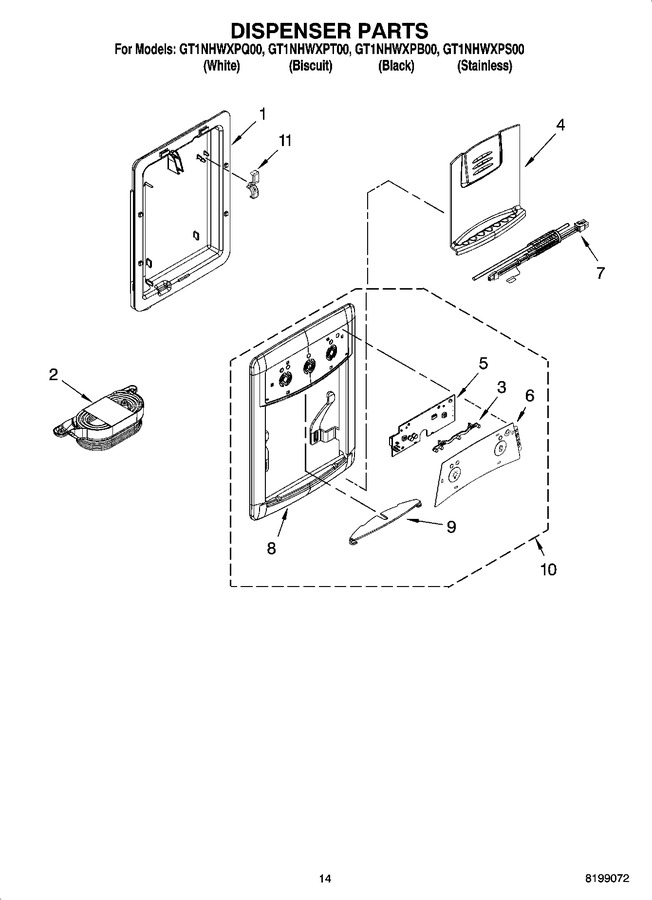

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | 2300485 | Reservoir |
|
$ 69.23 | |||||
| 3 | 2300626 | Light Pipe |
|
- | |||||
| 4 | 2300471B | Lever, Water Dispenser (black) |
|
- | |||||
| 4 | 2300471T | Lever, Water Dispenser (biscuit) |
|
- | |||||
| 4 | 2300471W | Lever, Water Dispenser (white) |
|
- | |||||
| 5 | 2300627 | User Interface, Dispenser (includes 3) |
|
- | |||||
| 7 | 2187791 | Wire Assembly |
|
- | |||||
| 10 | 2300628W | Front Cover Assembly (includes Items 3,5,6,8 & 9) (white) |
|
- | |||||
| 10 | 2300628B | Front Cover Assembly (includes Items 3,5,6,8 & 9) (black) |
|
- | |||||
| 10 | 2300628T | Front Cover Assembly (includes Items 3,5,6,8 & 9) (biscuit) |
|
- | |||||
| 11 | 2300629 | Switch, Toggle |
|
- | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 89.66 | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 8171357 | Enamel, Graphite (12 Oz. Spray Can) |
|
$ 82.31 | ||||||
| 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 26.45 | |||||
| 80051 | Brush Touch-up Kit (graphite) |
|
$ 7.64 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 8171358 | Enamel, Graphite (1 Qt. Uncut) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.07 | ||||||
| N/A | Torx Screw Wrench |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 231.56 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | |||||
| 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | ||||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 |
