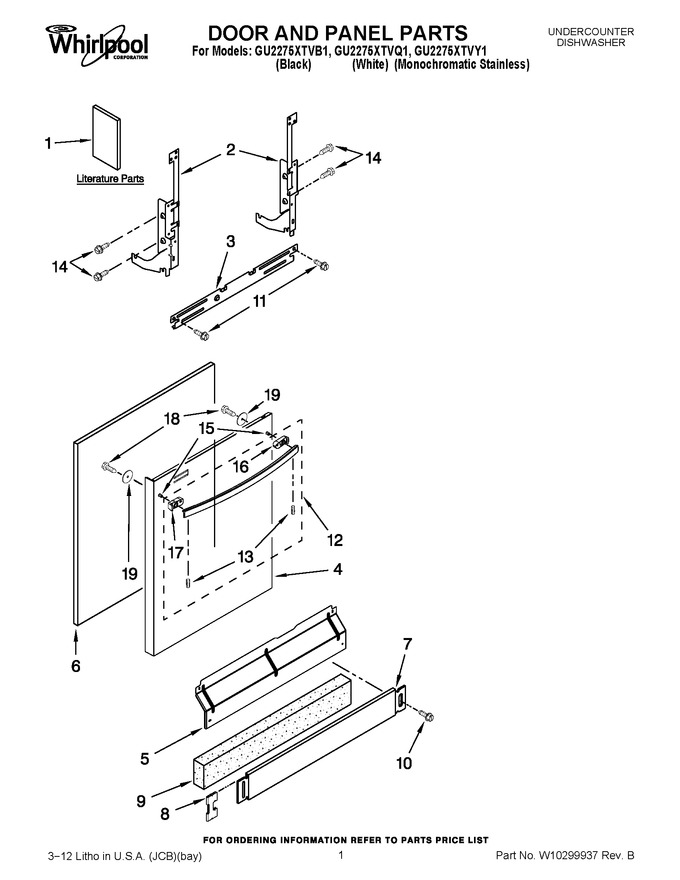

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10142781 | Guide, Use & Care English/french |
|
- | |||||
| 1 | W10142800 | Tech Sheet (english/french) |
|
- | |||||
| 1 | W10142908 | Guide, Use & Care Spanish |
|
- | |||||
| 1 | W10142914 | Instructions, Installation |
|
- | |||||
| 1 | W10254965 | Energy Guide |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10143374) |
|
Immediately | $ 66.52 | ||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10143373) |
|
Immediately | $ 78.37 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10133132 | Panel Front (white) |
|
$ 148.37 | |||||
| 4 | W10130955 | Panel Front (black) |
|
$ 136.09 | |||||
| 4 | W10133134 | Panel Front (stainless) |
|
$ 168.13 | |||||
| 5 | W11763736 | Access Panel Black (Replaces: 8573255) |
|
Immediately | $ 38.79 | ||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: 8573256) |
|
$ 162.80 | |||||
| 6 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 91.65 | |||||
| 7 | WPW10586591 | Toe Panel (includes Item 11) (white) (Replaces: 8558253) |
|
$ 309.39 | |||||
| 7 | W10871196 | Toe Panel (includes Item 11) (black) (Replaces: 8558252) |
|
$ 165.75 | |||||
| 8 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 10.68 | |||||
| 9 | W10831329 | Insulation, Toe Panel (Replaces: 8268581) |
|
Immediately | $ 40.71 | ||||
| 10 | WP3400836 | Screw (white) (Replaces: 3400836) |
|
$ 7.53 | |||||
| 10 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 7.75 | ||||
| 11 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 12 | W10142999 | Handle (black) |
|
- | |||||
| 12 | W10142998 | Handle (stainless) |
|
$ 91.71 | |||||
| 12 | W10143000 | Handle (white) |
|
- | |||||
| 13 | WP8534008 | Screw (Replaces: 8534008) |
|
$ 7.81 | |||||
| 14 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.00 | ||||
| 15 | WP8564951 | Studs (Replaces: 8564951) |
|
Immediately | $ 18.41 | ||||
| 16 | W10130962 | Endcap, Right (black) |
|
$ 53.36 | |||||
| 16 | W10131037 | Endcap, Right (midnight Grey) |
|
- | |||||
| 16 | W10131030 | Endcap, Right (white) |
|
$ 55.90 | |||||
| 17 | W10131029 | Endcap, Left (white) |
|
$ 54.03 | |||||
| 17 | W10131028 | Endcap, Left (black) |
|
$ 37.29 | |||||
| 17 | W10131038 | Endcap, Left (midnight Grey) |
|
- | |||||
| 18 | W10123421 | Screw |
|
$ 12.83 | |||||
| 19 | W10142904 | Plate-backing |
|
$ 50.57 |
