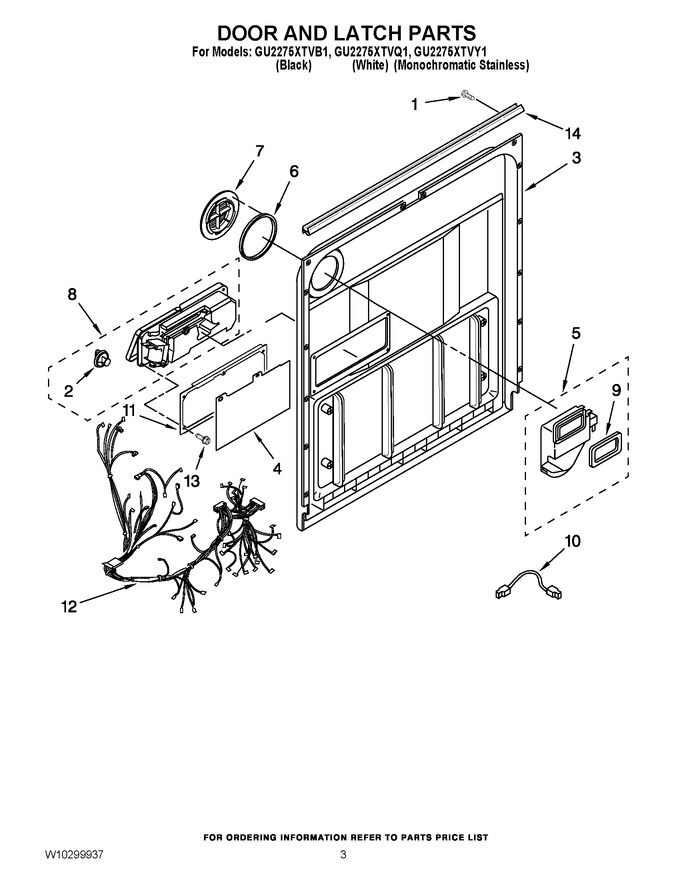

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348413		Screw, Door   (Replaces: 3400815)			Immediately	$ 8.41
2	WP8558307		Cap, Rinse Aid   (Replaces: 8558307)			Immediately	$ 21.27
3	W11513966		Inner Door (also Order Item 6)   (Replaces: 8575895)				$ 293.45
4	WP8531865		Shield, Dispenser   (Replaces: 8531865)				$ 113.15
5	WPW10164259		Vent Assembly (also Order Item 6)   (Replaces: W10164259)				$ 208.90
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	8575893		Deflector, Vent (also Order Item 6)				$ 30.65
8	WPW10199696		Dispenser, Assembly (includes Item 2)   (Replaces: W10224429)				$ 174.06
9	WP8269258		Seal. Front   (Replaces: 8269258)			Immediately	$ 96.86
10	8545608		Harness, Vent				$ 152.37
11	WPW10462232		Bracket, Dispenser Motor   (Replaces: 8535637)				$ 37.79
12	W10130989		Wiring Harness Main				$ 128.12
13	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
14	WP8269296		Seal, Console/door   (Replaces: 8269296)			Immediately	$ 188.17
