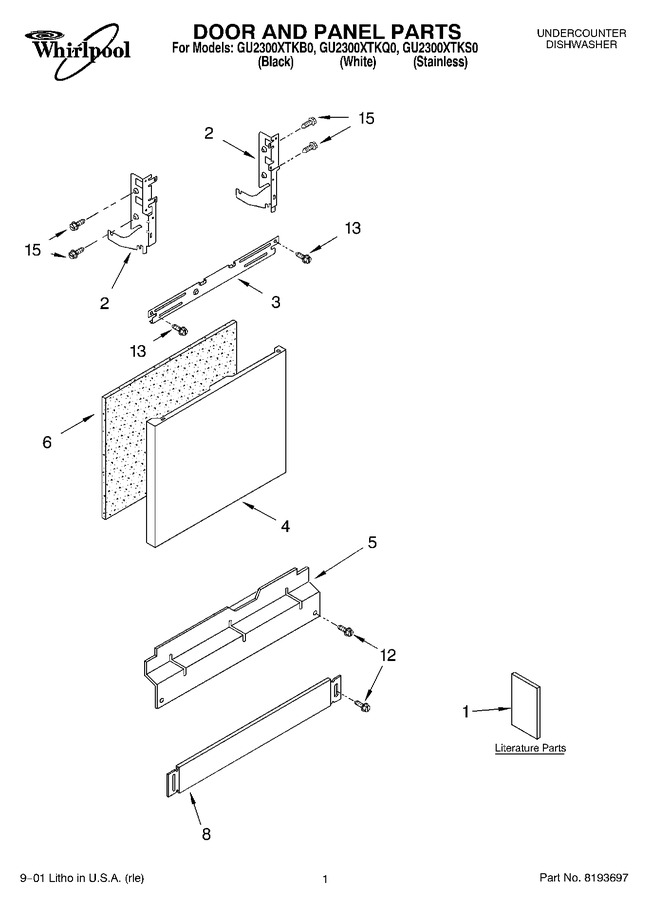

01 - Door And Panel, Literature


02 - Control Panel


03 - Door And Latch


04 - Lower Washarm


05 - Heater


06 - Fill And Overfill


07 - Tub And Frame


08 - Pump And Motor


09 - Upper Rack And Track


10 - Upper Wash And Rinse


11 - Lower Rack


12 - Miscellaneous


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8524517		Literature Parts (tech Sheet) (english)		Appelez-nous	-
1	LIT8524518		Literature Parts (tech Sheet) (french)		Appelez-nous	-
1	LIT8524511		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8524513		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT8524512		Literature Parts (guide, Use & Care)		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8269012)			Immediately	$ 130.98
2	W11806608		Arm, Hinge (right)   (Replaces: 8269011)			Immediately	$ 130.98
3	8268983		Stiffener, Door				$ 38.77
4	8269842		Panel Front (white)		Appelez-nous	-
4	W10301571		Panel Front (black)   (Replaces: 8269841)				$ 357.77
4	W10301577		Panel Front (stainless)   (Replaces: 8269845)				$ 365.45
5	W11763739		Access Panel (white)   (Replaces: 8268995)				$ 38.79
5	W11763736		Access Panel (black)   (Replaces: 8268994)			Immediately	$ 38.79
6	WPW10073520		Insulation, Door   (Replaces: 8268580)				$ 91.65
8	W10871196		Toe Panel (black)   (Replaces: 8268999)				$ 165.75
8	WPW10586591		Toe Panel (white)   (Replaces: 8269000)				$ 309.39
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 7.53
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 7.75
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
15	WP3400071		Screw (2)   (Replaces: 3400071)				$ 7.82
