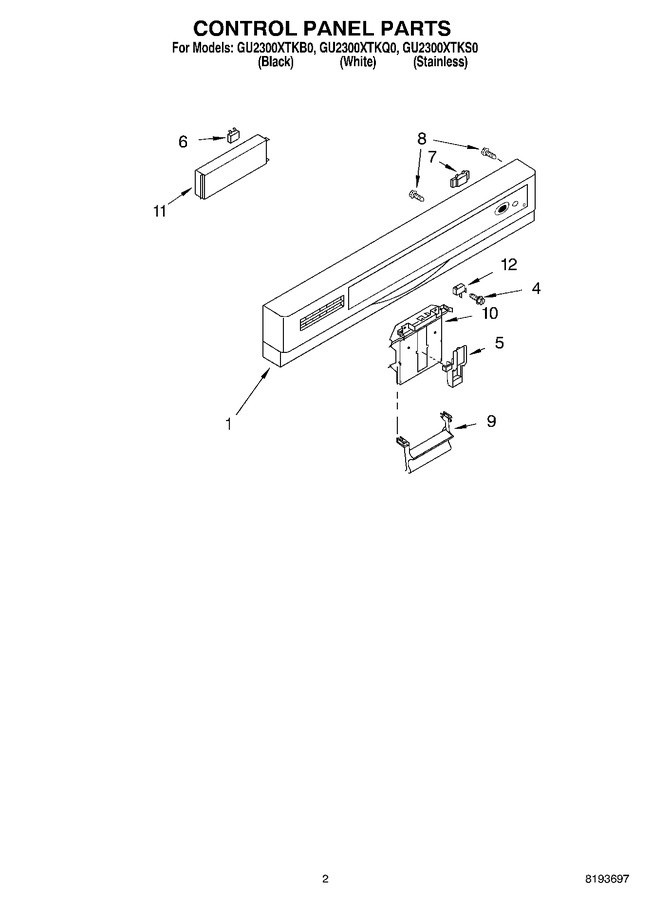

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8524484		Console Asm. Includes Active Overlay & Insert (white)		Appelez-nous	-
1	8524483		Console Asm. Includes Active Overlay & Insert (black)		Appelez-nous	-
4	3400409		Screw		Appelez-nous	-
5	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 96.46
6	8193762		Fuse, Thermal Electronic   (Replaces: 8269213)			Immediately	$ 40.88
7	8269205		Display, Dual Digit		Appelez-nous	-
8	WPW10348409		Screw (6)   (Replaces: 3369051)			Immediately	$ 7.76
9	WP8269323		Handle, Latch (white)   (Replaces: 8269324)				$ 125.97
9	WP8269323		Handle, Latch (black)   (Replaces: 8269323)				$ 125.97
10	8193882		Bolt, Latch   (Replaces: 8524476)			Immediately	$ 109.02
11	8528172		Control, Electronic		Appelez-nous	-
12	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 41.24

    View Diagram in Separate Window       Print Part List
