Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10254966 Energy Guide Appelez-nous -
1 W10142826 Tech Sheet (english) Appelez-nous -
1 W10142914 Instructions, Installation Appelez-nous -
1 W10158347 Tech Sheet (french) Appelez-nous -
1 W10142816 Guide, Use & Care (english/french) Appelez-nous -
1 W10142909 Guide, Use & Care (spanish) Appelez-nous -
2 W11806566 Arm, Hinge (left)   (Replaces: W10143374) In-Stock Immediately $ 66.52

2 W11613572 Arm, Hinge (right)   (Replaces: W10143373) In-Stock Immediately $ 78.37

3 8268983 Stiffener, Door Special Order $ 38.77

4 W10102677 Panel Front (white) Appelez-nous -
4 W10102680 Panel Front (stainless) Appelez-nous -
4 W10102678 Panel Front (biscuit) Appelez-nous -
4 W10102676 Panel Front (black) Appelez-nous -
5 W10871198 Access Panel (biscuit)   (Replaces: 8573257) Special Order $ 147.59

5 W11763736 Access Panel Black   (Replaces: 8573255) In-Stock Immediately $ 38.79

5 WPW10441007 Access Panel (white)   (Replaces: 8573256) Special Order $ 162.80

6 W10799406 Toe Panel (includes Item 7) (white)   (Replaces: W10205337) Special Order $ 159.12

6 W10871196 Toe Panel (includes Item 7) (black)   (Replaces: W10205336) Special Order $ 165.75

6 W10205338 Toe Panel (includes Item 7) (biscuit) Special Order $ 60.82

7 WP8269016 Clip, Grounding   (Replaces: 8269016) Special Order $ 10.68

8 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 7.53

8 3400865 Screw (biscuit) Special Order $ 13.40

8 WP302868 Screw Black   (Replaces: 302868) In-Stock Immediately $ 7.75

9 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.86

10 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.00

11 W10175320 Name Plate Special Order $ 41.71

12 WPW10073520 Insulation, Front Panel   (Replaces: W10073520) Special Order $ 91.65

13 W10831329 Insulation Toe Panel   (Replaces: W10073540) In-Stock Immediately $ 40.71


    View Diagram in Separate Window     Print Icon   Print Part List

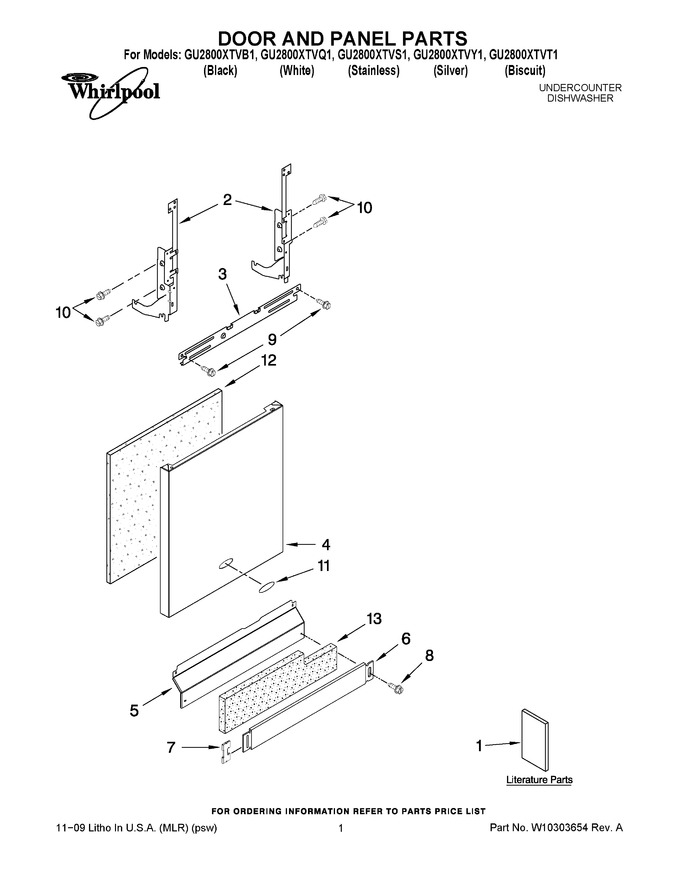

Diagram for GU2800XTVB1
