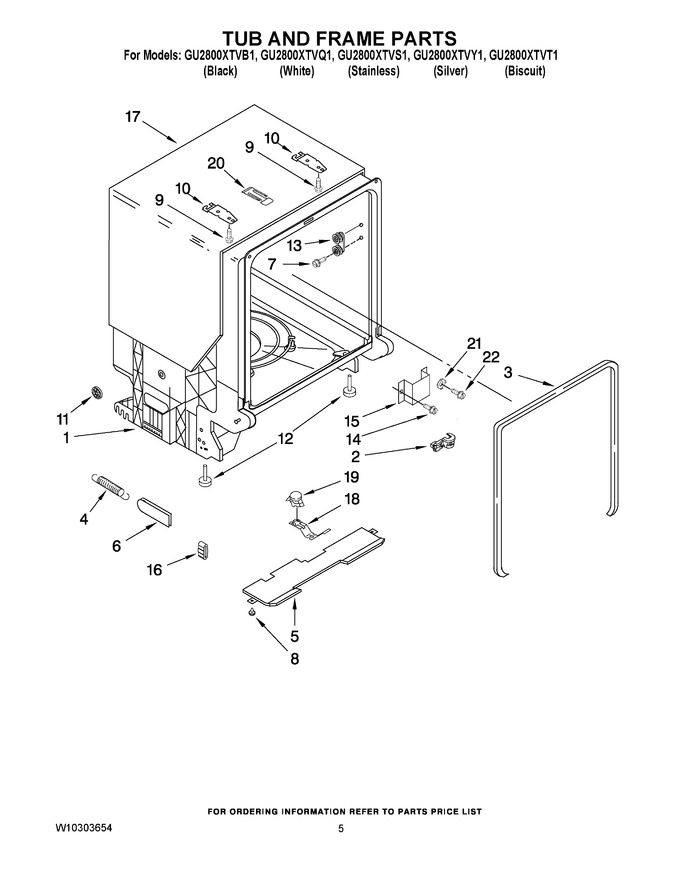

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11513976 | Tub Assembly (includes Heater Assembly) (Replaces: W10254859) |
|
$ 502.10 | |||||
| 2 | W11384788 | Strain, Relief (Replaces: 8573061) |
|
$ 21.51 | |||||
| 3 | W10542314 | Door Seal (Replaces: 8268888) |
|
Immediately | $ 97.26 | ||||
| 4 | WPW10337934 | Spring, Door Balance (Replaces: 8524473) |
|
Immediately | $ 34.61 | ||||
| 5 | WPW10746770 | Sound Insulation Bottom (Replaces: W10266857) |
|
$ 42.70 | |||||
| 6 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 30.52 | ||||
| 7 | WPW10348407 | Screw (Replaces: 3400072) |
|
$ 7.69 | |||||
| 8 | WP3400924 | Retainer, Push-in (Replaces: 3400924) |
|
Immediately | $ 43.23 | ||||
| 9 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.87 | ||||
| 10 | WP8269145 | Bracket,undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 11 | WP8269831 | Wheel Leg (Replaces: 8269831) |
|
$ 7.52 | |||||
| 12 | 8193716 | Leveler, Leg (Replaces: 8524584) |
|
Immediately | $ 84.72 | ||||
| 13 | WP8575897 | Wheel & Mount Assembly (Replaces: 8575897) |
|
Immediately | $ 9.70 | ||||
| 14 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.75 | |||||
| 15 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.79 | |||||
| 16 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 | ||||
| 17 | W10877094 | Shield, Sound Tub (Replaces: 8573239) |
|
$ 222.15 | |||||
| 18 | W10539489 | Bracket, Thermostat (Replaces: 3378595) |
|
$ 19.18 | |||||
| 19 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 20 | WP8580309 | Strike, Latch (Replaces: 8580309) |
|
Immediately | $ 44.69 | ||||
| 21 | WP3378128 | Washer, Pronged (Replaces: 3378128) |
|
$ 9.03 | |||||
| 22 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 7.75 |
