01 - Cover Sheet


02 - Control Panel Parts

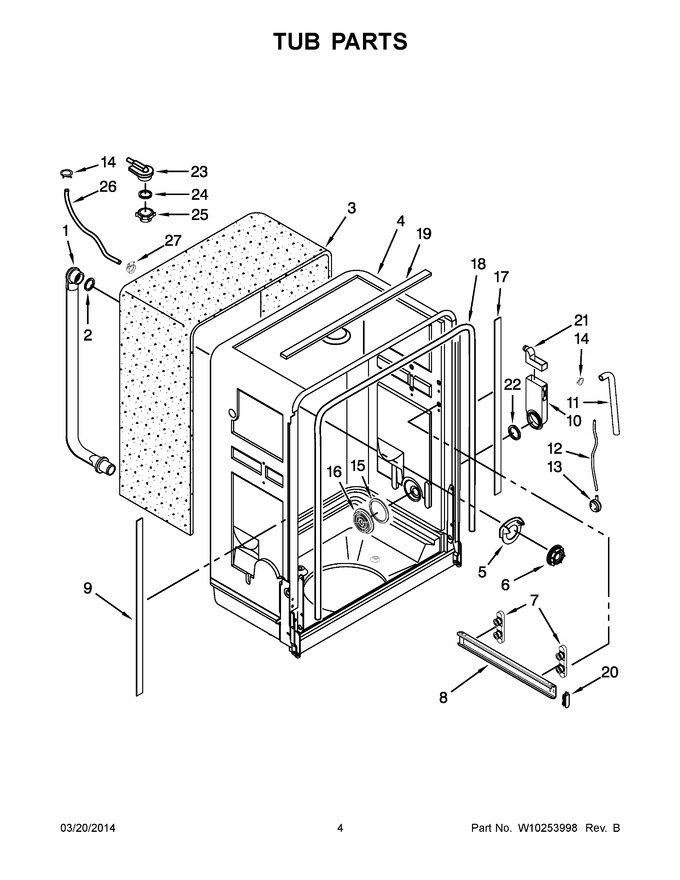

03 - Tub Parts


04 - Door And Toe Panel Parts


05 - Frame Parts


06 - Pump And Sprayarm Parts


07 - Dishrack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10221996		Tube, Feed		Appelez-nous	-
2	W10221997		Gasket		Appelez-nous	-
3	W10221831		Shield, Sound		Appelez-nous	-
4	W10221833		Tub, Dishwasher		Appelez-nous	-
5	W10221998		Guide		Appelez-nous	-
6	W10221999		Nut		Appelez-nous	-
7	W10221847		Wheel, Tub		Appelez-nous	-
8	W10181581		Track		Appelez-nous	-
9	W10200347		Trim, Tank Left (white)		Appelez-nous	-
9	W10221897		Trim, Tank Left (black)		Appelez-nous	-
10	W10222017		Inlet, Air		Appelez-nous	-
11	W10222014		Hose, Inlet		Appelez-nous	-
12	W10222089		Hose, Pvc		Appelez-nous	-
13	W10181588		Switch, Pressure				$ 94.20
14	W10181583		Clamp		Appelez-nous	-
15	W10181585		Gasket		Appelez-nous	-
16	W10222024		Bezel, Inlet		Appelez-nous	-
17	W10221865		Trim, Tank Right (white)		Appelez-nous	-
17	W10200349		Trim, Tank Right (black)		Appelez-nous	-
18	W10221842		Gasket, Door		Appelez-nous	-
19	W10221838		Trim, Tank Top (white)		Appelez-nous	-
19	W10221839		Trim, Tank Top (black)		Appelez-nous	-
20	W10221854		Stop, Track		Appelez-nous	-
21	W10222016		Cover, Inlet		Appelez-nous	-
22	W10222021		Tube-vent		Appelez-nous	-
23	W10222056		Connector		Appelez-nous	-
24	W10221997		O-ring   (Replaces: W10222053)		Appelez-nous	-
25	W10222052		Spinner		Appelez-nous	-
26	W10222050		Tube-feed		Appelez-nous	-
27	W10222043		Clamp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
