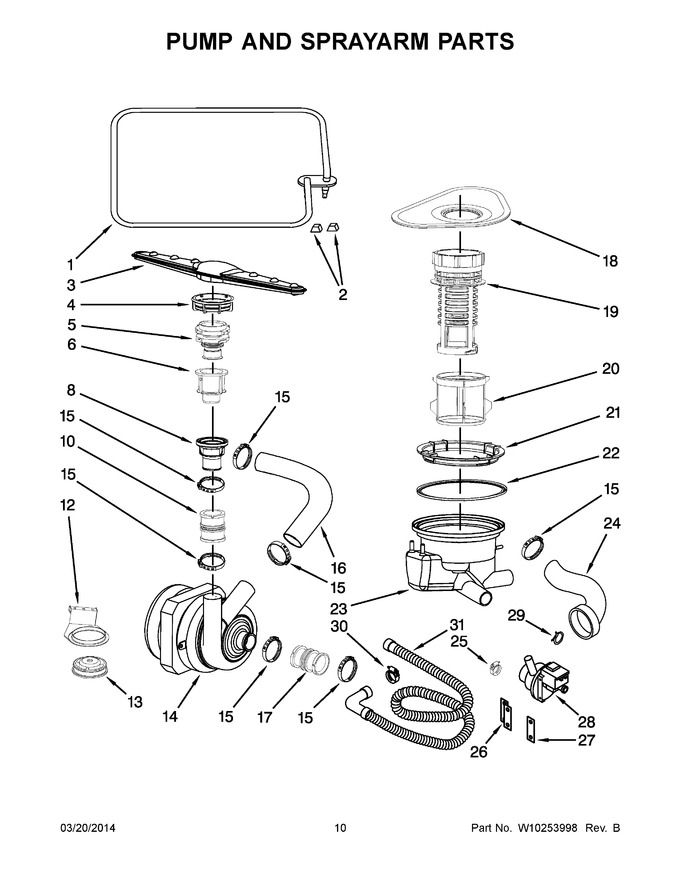

06 - Pump And Sprayarm Parts


07 - Dishrack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10222036		Heater		Appelez-nous	-
2	W10181653		Cover		Appelez-nous	-
3	W10222000		Sprayarm		Appelez-nous	-
4	W10222060		Nut, Lower Sprayarm		Appelez-nous	-
5	W10222061		Support, Arm		Appelez-nous	-
6	W10222062		Support, Lower Manifold		Appelez-nous	-
8	W10222063		Nut, Support Manifold		Appelez-nous	-
10	W10222071		Hose		Appelez-nous	-
12	W10181643		Support		Appelez-nous	-
13	W10222073		Grommet		Appelez-nous	-
14	WPW10222074		Motor, Pump   (Replaces: W10222074)				$ 288.74
15	W10181635		Clamp		Appelez-nous	-
16	W10181638		Hose		Appelez-nous	-
17	W10222085		Hose		Appelez-nous	-
18	W10181660		Sieve		Appelez-nous	-
19	W10222002		Filter, Drain		Appelez-nous	-
20	W10222003		Microfilter		Appelez-nous	-
21	W10222004		Nut, Sump		Appelez-nous	-
22	W10181656		Gasket, Sump		Appelez-nous	-
23	W10181655		Sump				$ 78.10
24	W10222013		Hose, Drain		Appelez-nous	-
25	W10222033		Clamp		Appelez-nous	-
26	W10222027		Support		Appelez-nous	-
27	W10222026		Pad		Appelez-nous	-
28	W10222025		Pump-drain		Appelez-nous	-
29	W10181583		Clamp		Appelez-nous	-
30	W10222096		Clamp		Appelez-nous	-
31	WPW10181619		Hose-drain   (Replaces: W10181619)				$ 128.38
