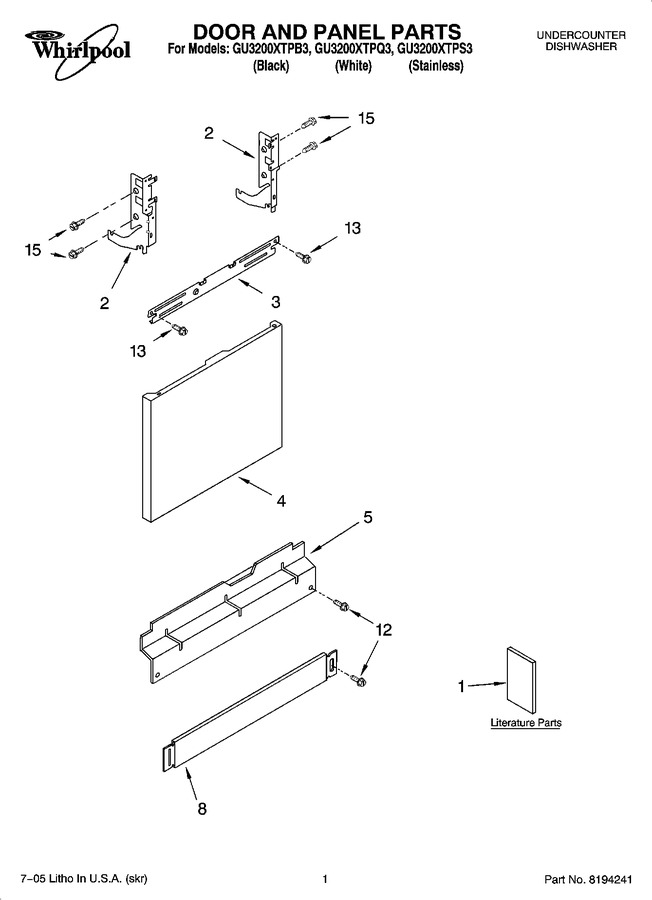

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8535644		Energy Guide		Appelez-nous	-
1	8535438		Instructions, Installation		Appelez-nous	-
1	8535541		Guide, Use & Care		Appelez-nous	-
1	8535451		Tech Sheet (english/french)		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 130.98
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 130.98
3	8268983		Stiffener, Door				$ 38.77
4	8269842		Panel Front (white)		Appelez-nous	-
4	W10301571		Panel Front (black)   (Replaces: 8269841)				$ 357.77
4	W10301577		Panel Front (stainless)   (Replaces: 8269845)				$ 365.45
5	WPW10441007		Access Panel (white)   (Replaces: 8543835)				$ 162.80
5	W11763736		Access Panel (black)   (Replaces: 8543834)			Immediately	$ 38.79
8	WPW10586591		Toe Panel (white)   (Replaces: 8269000)				$ 309.39
8	W10871196		Toe Panel (black)   (Replaces: 8268999)				$ 165.75
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 7.53
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 7.75
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
15	WP3400071		Screw (2)   (Replaces: 3400071)				$ 7.82
