SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts

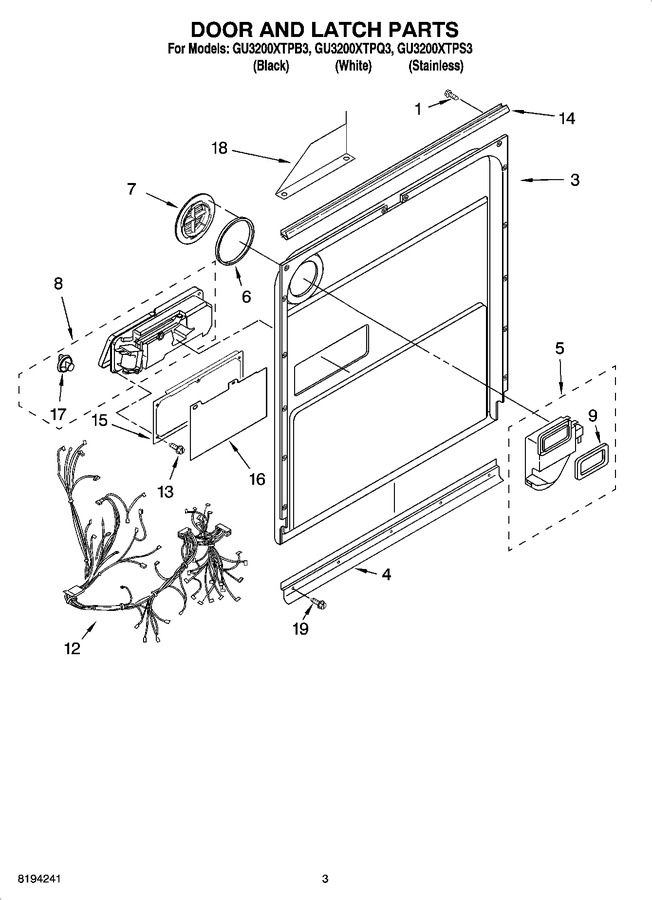

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 7.76
3	8531026		Inner Door Mastic Assembly (also Order Item 6)		Appelez-nous	-
4	WP8268937		Inlet, Air   (Replaces: 8268937)			Immediately	$ 58.29
5	WP8545533		Vent Assembly (also Order Item 6)   (Replaces: 8545533)				$ 193.90
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	WP8545536		Deflector, Vent (also Order Item 6)   (Replaces: 8545536)				$ 79.32
8	WP8558129		Dispenser, Assembly   (Replaces: 8558128)			Immediately	$ 79.69
9	WP8269258		Seal. Front   (Replaces: 8269258)			Immediately	$ 92.25
12	8573178		Wiring Harness Main				$ 114.11
13	WPW10177098		Screw (6)   (Replaces: 8281154)			Immediately	$ 7.64
14	WP8535660		Seal,console/door   (Replaces: 8535660)				$ 177.15
15	WPW10462232		Bracket, Dispenser   (Replaces: 8535637)				$ 36.04
16	WP8531865		Shield, Dispenser   (Replaces: 8531865)				$ 107.76
17	WP8558307		Cap, Rinse Aid   (Replaces: 8558307)			Immediately	$ 21.27
18	8531799		Shield, Solenoid				$ 33.64
19	W11631670		Screw   (Replaces: 8281217)				$ 14.02

    View Diagram in Separate Window       Print Part List
