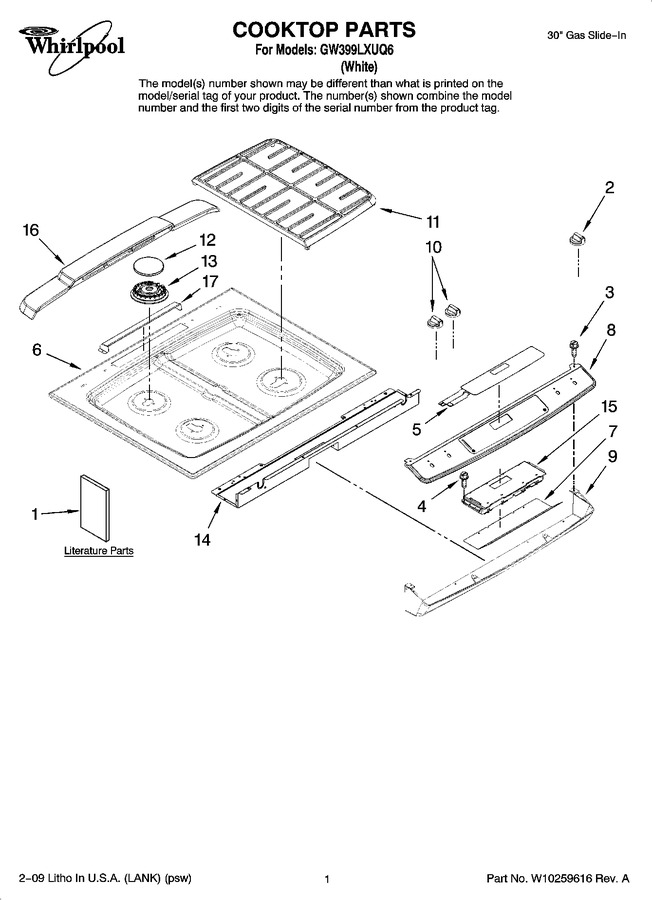

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8113P681-60		Installation Instructions		Appelez-nous	-
1	8113P679-60		Owners Manual		Appelez-nous	-
1	9762761		Brochure, Tips Safe Cooking (english)		Appelez-nous	-
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
2	W10177198		Knob, Accusimmer   (Replaces: 7733P533-60)				$ 84.89
3	7101P501-60		Screw		Appelez-nous	-
4	WP59002061		Screw   (Replaces: 7101P077-60)				$ 8.18
5	WPW10207935		Membrane, Switch   (Replaces: W10207935)				$ 347.49
6	2001W231-81		Cooktop		Appelez-nous	-
7	W10166279		Shield, Control		Appelez-nous	-
8	W10177205		Panel, Control				$ 136.74
9	W10185607		Panel, Control (lwr)				$ 125.65
10	W10177197		Knob, Valve (3)   (Replaces: 7733P527-60)				$ 20.29
11	7518P486-60		Grate, Burner (2)		Appelez-nous	-
12	WPW10173832		Cap, Burner (12.5k (2))   (Replaces: W10173832)				$ 79.28
12	W10169973		Cap, Burner (16k (1))				$ 102.63
12	WPW10169975		Cap, Burner (5k (1))   (Replaces: W10169975)				$ 70.50
13	WPW10406797		Base, Burner (12k Rr,lf (2))   (Replaces: 8286182)				$ 92.91
13	WPW10406243		Base, Burner (5k Lr) (1)   (Replaces: 7540P031-60)			Immediately	$ 39.08
13	WPW10406878		Base, Burner (16k Rf (1))   (Replaces: 8286183)				$ 107.48
14	3807F769-51		Support, Cntl Pnl		Appelez-nous	-
15	8507P391-60		Control, (erc)				$ 421.07
16	7724P202-60		Cover, Vent		Appelez-nous	-
17	3601F221-45		Baffle, Vent Cover				$ 28.30
